Crimp link terminal double grip, conductor sizes 4 - 6mm2, 50pcs, yellow
Art.-No. 924-00453 | BS5-CU/PVC-YE |

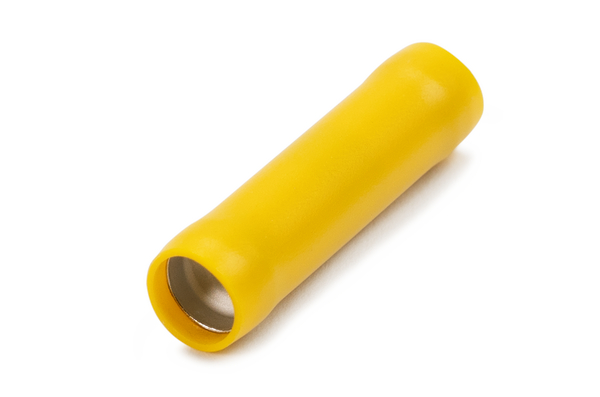

Crimp link terminal, BS5.

Crimp Link, Side View

Three conductor sizes for versatile wiring needs
Colour-coded for easier identification
Enhanced pull-out force provides a stronger, more secure hold
Widely used in control panels, power distribution, automotive and heavy machinery
Manufactured with an additional copper sleeve to allow for premium vibration resistance
Packaged in a resealable bag
REACH compliant

Stock item

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

Crimp Link Terminals >

Base Data

Application	Crimp links are used to join two wires together, creating a strong and reliable connection that maintains consistent current flow and mechanical strength. The added copper sleeve and double grip design hold the wires firmly in place, helping prevent them from coming loose-especially in environments with vibration or movement. Suitable for a wide range of electrical installations, they’re commonly used in automotive repairs, industrial control panels and retrofit projects. For best results, crimp using the HYYT7 tool to achieve a clean and consistent finish.
Colour	Yellow (YE)
Description	Crimp link double grip, conductor size 4 - 6mm², yellow
Local order number	BS5
Material	Copper (CU), Polyvinylchloride (PVC)
Max Current	48A
Max Voltage	600V
PART DESCRIPTION	BS5-CU/PVC-YE
Package Content	50pcs.
Package Content packed in	bag
Product Family	Double Grip Pre-Insulated
Product Group	Crimp Link Terminals
Type	BS5

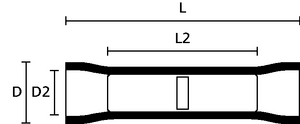

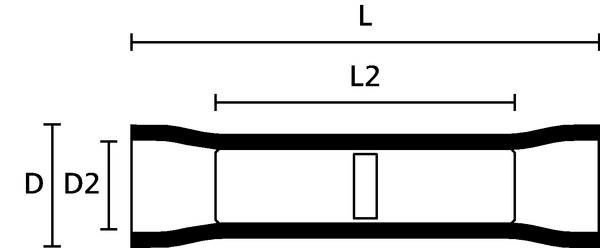

Product Dimensions

⌀ (D2)	3.40mm
Conductor Size Range mm²	4.0-6.0mm²
Diameter (D)	6.3mm
Length (L)	29mm
Length (L2)	17mm

Downloads

Specifications

Operating Temperature	+75 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

GTIN-13 / EAN

9349519000370

More Information

Accessories

HYYT7 924-00316
Terminal Crimp Tools
