Heat shirnk crimp link terminal double grip, conductor sizes 1.5 - 2.5mm2, 100pcs, blue
Art.-No. 924-00455 | BSW2-CU/PVC-BU |

Copied

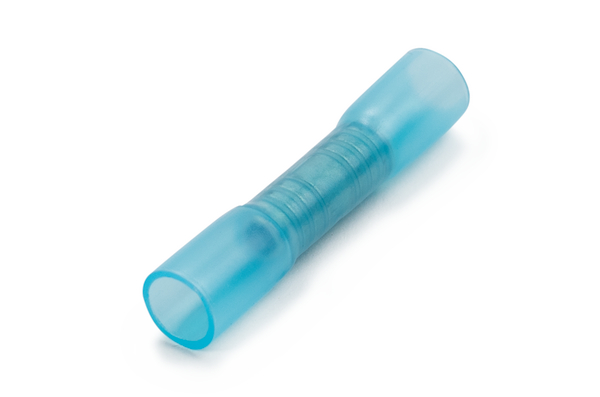

Heatshrink crimp link terminal, BSW2.
Heatshrink Crimp Link, Side View

    • Double grip to ensure stronger pull out force
    • Mastic adhesive used for moisture protection
    • Colour coded for easy identification
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The Heatshrink Crimp Links are recommended for connecting electrical conductors in challenging industrial applications. Manufactured with an additional copper sleeve and PVC insulation, for maximum vibration resistance and premium wire insulation and are also waterproof. A precise terminal application tool is recommended to crimp the link, then using a heatgun or blowtorch to seal the heatshrink.
    Colour Blue (BU)
    Description CRIMP LINK PRE-INS W/PROOF S/GR 1.5MM²-2.5MM² BLUE
    Local order number BSW2
    Material Copper (CU), Polyvinylchloride (PVC)
    Max Current 27A
    Max Voltage 600V
    PART DESCRIPTION BSW2-CU/PVC-BU
    Package Content 100pcs.
    Package Content packed in bag
    Product Family Single Grip Pre-Insulated Terminals
    Product Group Heat Shrink Crimp Link (Waterproof Connectors)
    Type BSW2
    ⌀ (D2) 2.75mm
    Conductor Size Range mm² 1.5-2.5mm²
    Diameter (D) 5.6mm
    Length (L) 35.5mm
    Length (L2) 15mm
    Halogen-free Yes
    Operating Temperature +75 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 9349519000394
