Flat blade terminal double grip, conductor sizes 1.5 - 2.5mm2, long, 100pcs, blue
Art.-No. 924-00406 | FBD2L-CU/PVC-BU |

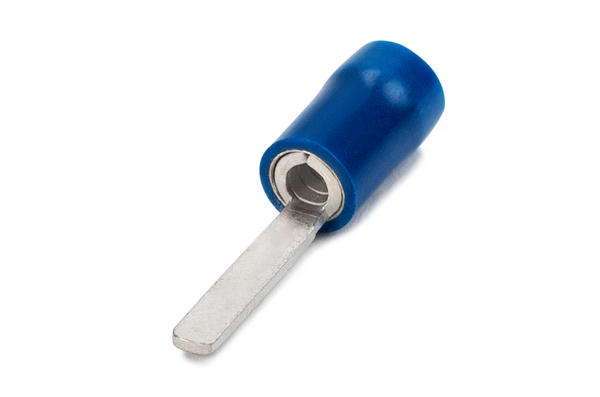

Flat blade terminal, FBD2 series.

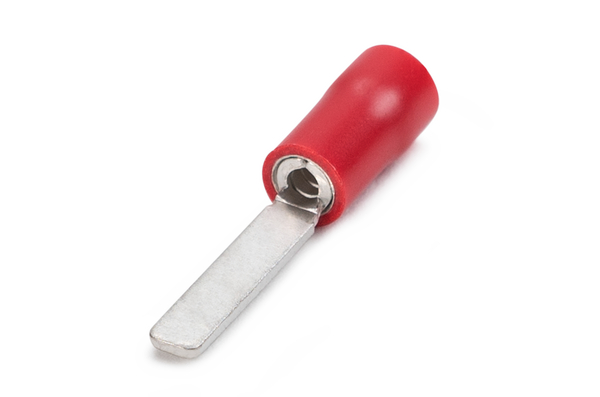

Flat blade terminal, FBD1 series.

Flat Blade, Front View

Flat Blade, Side View

Double grip for high vibration industrial applications
Reinforcement Sleeve: C Type
Colour coded for easier identitfication
Enhanced Pull-Out Force which provides a stronger, more secure hold
Additional copper sleeve for premium vibration
Copper terminal body with PVC insulation for enhanced wire insulation
Packaged in resealable bags
REACH compliant

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

Flat Blade Terminals >

Base Data

Application	Double grip flat blade terminals offer a fast and reliable solution for plug-in connections in demanding industrial and automotive applications. The flat blade design ensures consistent contact with mating connectors, making them ideal for quick-disconnect systems. The additional copper sleeve and PVC insulation provide enhanced wire protection, mechanical strength and resistance to vibration and pull-out stress. Use with the HYYT7 crimping tool for best results.
Colour	Blue (BU)
Description	FLAT BLADE BLUE DOUBLE GRIP LONG 18MM PIN
Local order number	FBD2L
Material	Copper (CU), Polyvinylchloride (PVC)
Max Current	27A
Max Voltage	600V
PART DESCRIPTION	FBD2L-CU/PVC-BU
Package Content	100pcs.
Package Content packed in	bag
Product Family	Double Grip Pre-Insulated
Product Group	Flat Blade Terminals
Type	FBD2L

Product Dimensions

Conductor Size Range mm²	1.5-2.5mm²
Diameter (D)	5mm
Length (L)	28mm
Length (L2)	10mm
Length (L3)	18mm
Width (W)	2.4mm

Downloads

Specifications

Operating Temperature	+75 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

GTIN-13 / EAN

9349519000448

More Information

Accessories

HYYT7 924-00316
Terminal Crimp Tools
