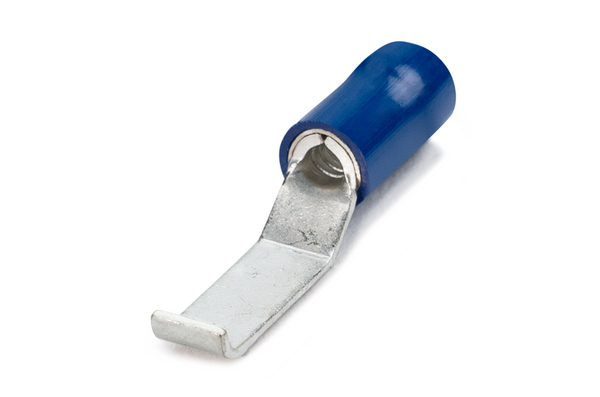

Flat blade terminal double grip, conductor sizes 1.5 - 2.5mm2, narrow, 100pcs, blue
Art.-No. 924-00414
| LBD2N-CU/PVC-BU
|
Copied
- Three conductor sizes for versatile wiring needs
- Colour-coded for easier identification
- Enhanced pull-out force provides a stronger, more secure hold
- Widely used in control panels, power distribution, automotive and heavy machinery
- Manufactured with an additional copper sleeve to allow for premium vibration resistance
- Packaged in a resealable bag
- REACH compliant
Request your individual offer now
Request quote
More products in this product group:
| Application | Pre-insulated double grip lip blade terminals are designed for secure plug-in connections in high-vibration environments. The lip blade profile improves mating stability by helping to lock the terminal in place, reducing the risk of disconnection. The additional copper sleeve and PVC insulation provide enhanced wire protection, strain relief and electrical safety. Ideal for use in modular systems and quick-disconnect setups. Use with the HYYT7 crimping tool for best results. |
| Colour | Blue (BU) |
| Description | Lip blade terminal double grip, conductor size 1.5 - 2.5mm² (narrow - 3mm), blue |
| Local order number | LBD2N |
| Material | Copper (CU), Polyvinylchloride (PVC) |
| Max Current | 27A |
| Max Voltage | 600V |
| PART DESCRIPTION | LBD2N-CU/PVC-BU |
| Package Content | 100pcs. |
| Package Content packed in | bag |
| Product Family | Double Grip Pre-Insulated |
| Product Group | Lip Blade Terminals |
| Type | LBD2N |
Download
HYYT7
924-00316

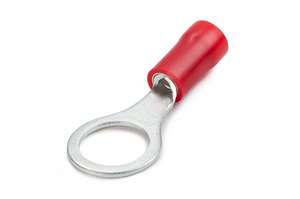

RD1-10-CU/PVC-RD
924-00365

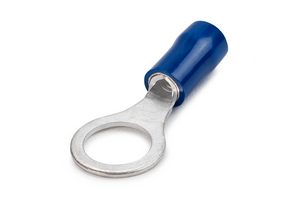

RD2-10-CU/PVC-BU
924-00372

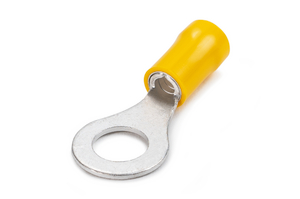

RD5-10-CU/PVC-YE
