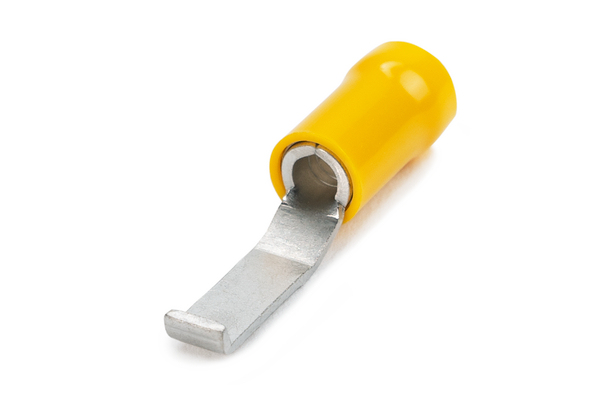

Flat blade terminal double grip, conductor sizes 4 - 6mm2, wide, 50pcs, yellow
Art.-No. 924-00417 | LBD5W-CU/PVC-YE |

Lip blade terminal, LBD5 series.

Lip Blade, Front View

Lip Blade, Side View

Double grip for high vibration industrial applications
Colour coded for easier identitfication
Enhanced Pull-Out Force which provides a stronger, more secure hold
Additional copper sleeve for premium vibration
Copper terminal body with PVC insulation for enhanced wire insulation
Packaged in a resealable bag
REACH compliant

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

Lip Blade Terminals >

Base Data

Application	Pre-insulated double grip lip blade terminals are designed for secure plug-in connections in high-vibration environments. The lip blade profile improves mating stability by helping to lock the terminal in place, reducing the risk of disconnection. The additional copper sleeve and PVC insulation provide enhanced wire protection, strain relief and electrical safety. Ideal for use in modular systems and quick-disconnect setups. Use with the HYYT7 crimping tool for best results.
Colour	Yellow (YE)
Description	LIP BLADE YELLOW DOUBLE GRIP WIDE 5MM BLADE
Local order number	LBD5W
Material	Copper (CU), Polyvinylchloride (PVC)
Max Current	48A
Max Voltage	600V
PART DESCRIPTION	LBD5W-CU/PVC-YE
Package Content	50pcs.
Package Content packed in	bag
Product Family	Double Grip Pre-Insulated
Product Group	Lip Blade Terminals
Type	LBD5W

Product Dimensions

Conductor Size Range mm²	4.0-6.0mm²
Diameter (D)	6.8mm
Length (L)	31.8mm
Length (L2)	14mm
Length (L3)	17.3mm
Width (W)	4.6mm
Width (W3)	3mm

Downloads

Specifications

Operating Temperature	+75 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

GTIN-13 / EAN

9349519000523

More Information

Accessories

HYYT7 924-00316
Terminal Crimp Tools
