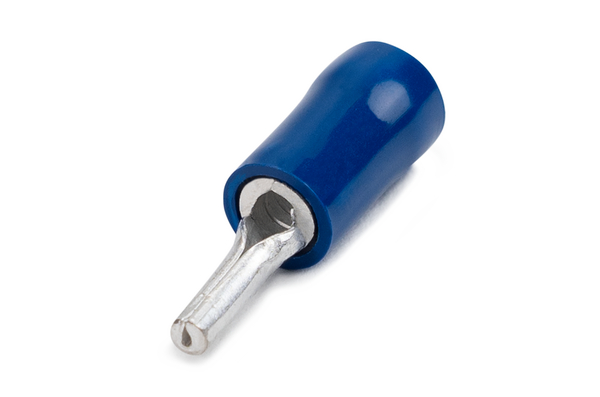

Pin connector terminal double grip, conductor sizes 1.5 - 2.5mm2, 100pcs, blue
Art.-No. 924-00401 | PD2-CU/PVC-BU |

Pin connector terminal, PD2.

Pin Connector, Front View

Pin Connector, Side View

Double grip for high vibration industrial applications
Colour coded for easier identitfication
Enhanced Pull-Out Force which provides a stronger, more secure hold
Additional copper sleeve for premium vibration
Copper terminal body with PVC insulation for enhanced wire insulation
Packaged in resealable bags
REACH compliant

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

Pin Connectors >

Base Data

Application	Pin connectors are designed for insertion into terminal blocks or connectors where a solid pin is required. The additional copper sleeve and PVC insulation provide premium wire protection and maximum vibration resistance. The double grip insulation enhances mechanical strength and electrical reliability, making them ideal for high-density wiring in demanding industrial environments. Use with the HYYT7 crimping tool for best results.
Colour	Blue (BU)
Description	PIN CONNECTOR BLUE D/GRIP 9.3MM PIN 1.5MM²-2.5MM²
Local order number	PD2
Material	Copper (CU), Polyvinylchloride (PVC)
Max Current	27A
Max Voltage	600V
PART DESCRIPTION	PD2-CU/PVC-BU
Package Content	100pcs.
Package Content packed in	bag
Product Family	Double Grip Pre-Insulated
Product Group	Pin Connectors
Type	PD2

Product Dimensions

⌀ (D2)	2.00mm
Conductor Size Range mm²	1.5-2.5mm²
Diameter (D)	5.3mm
Length (L)	20.7mm
Length (L2)	10.7mm
Length (L3)	10mm

Downloads

Specifications

Operating Temperature	+75 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

GTIN-13 / EAN

9349519000332

More Information

Accessories

HYYT7 924-00316
Terminal Crimp Tools
