24/10/2025

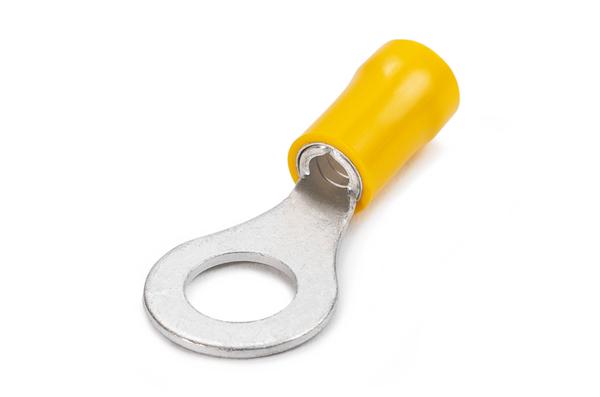

Ring terminal double grip, conductor sizes 4 - 6mm2, M5, 100pcs, yellow
Art.-No. 924-00383 | RD5-5-CU/PVC-YE |

Ring terminal, RD5 series.

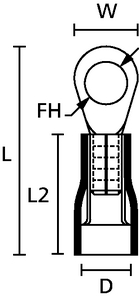

Ring Terminal, Front View

Ring Terminal, Side View

Double grip for high vibration industrial applications
Colour coded for easier identitfication
Enhanced Pull-Out Force which provides a stronger, more secure hold
Additional copper sleeve for premium vibration
Copper terminal body with PVC insulation for enhanced wire insulation
Packaged in a resealable bag
REACH compliant

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

Ring Terminals >

Base Data

Application	Double grip ring terminals are ideal for wire-to-stud connections in demanding industrial environments and applications with high vibration. The ring shape ensures secure contact, while the additional copper sleeve and PVC insulation provide premium wire protection and vibration resistance. The terminal remains fixed as the screw passes through the stud hole. Use with the HYYT7 crimping tool for best results.
Colour	Yellow (YE)
Description	RING TERMINAL YELLOW D/GRIP 5MM HOLE 4MM²-6MM²
Local order number	RD5-5
Material	Copper (CU), Polyvinylchloride (PVC)
Max Current	48A
Max Voltage	600V
PART DESCRIPTION	RD5-5-CU/PVC-YE
Package Content	100pcs.
Package Content packed in	bag
Product Family	Double Grip Pre-Insulated
Product Group	Ring Terminals
Type	RD5-5

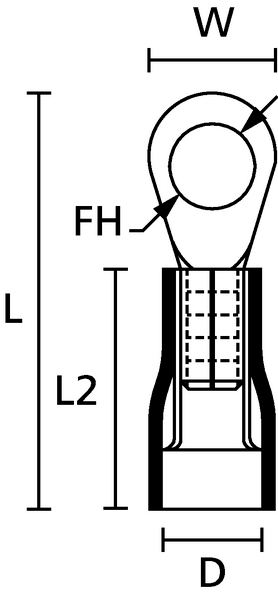

Product Dimensions

Conductor Size Range mm²	4.0-6.0mm²
Diameter (D)	6.8mm
Length (L)	26.2mm
Length (L2)	13.6mm
Length (L3)	12.6mm
Width (W)	9.5mm
for Hole ⌀ (FH)	5.3 mm

Downloads

Specifications

Operating Temperature	+75 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

GTIN-13 / EAN

9349519000134

More Information

Accessories

HYYT7 924-00316
Terminal Crimp Tools
