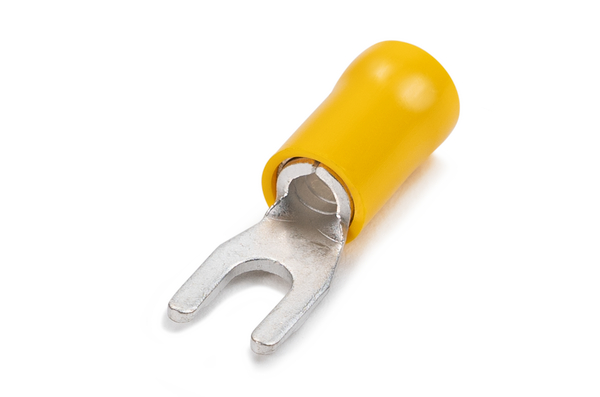

Spade/Fork terminal double grip, conductor sizes 4 - 6mm2, M5, 50pcs, yellow
Art.-No. 924-00398 | SD5-5-CU/PVC-YE |

Spade/Fork terminal, SD5 series.

Spade/Fork, Front View

Spade/Fork, Side View

Double grip for high vibration industrial applications
Colour coded for easier identitfication
Enhanced Pull-Out Force which provides a stronger, more secure hold
Additional copper sleeve for premium vibration
Copper terminal body with PVC insulation for enhanced wire insulation
Packaged in a resealable bag
REACH compliant

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

Spade/Forks Terminals >

Base Data

Application	Double grip fork terminals (also known as spade terminals) allow for quick and easy connections to screw-type terminals in demanding industrial environments. The fork shape allows fast installation without fully removing the screw and is compatible with terminal strips. The additional copper sleeve and PVC insulation provide premium wire protection and vibration resistance. Use with the HYYT7 crimping tool for best results.
Colour	Yellow (YE)
Description	FORK TERMINAL YELLOW D/GRIP 5MM FORK 4MM²-6MM²
Local order number	SD5-5
Material	Copper (CU), Polyvinylchloride (PVC)
Max Current	48A
Max Voltage	600V
PART DESCRIPTION	SD5-5-CU/PVC-YE
Package Content	50pcs.
Package Content packed in	bag
Product Family	Double Grip Pre-Insulated
Product Group	Spade/Forks Terminals
Type	SD5-5

Product Dimensions

Conductor Size Range mm²	4.0-6.0mm²
Diameter (D)	6.7mm
Length (L)	26.2mm
Length (L2)	13.6mm
Length (L3)	12.6mm
Width (W)	9mm
for Hole ⌀ (FH)	5.3 mm

Downloads

Specifications

Operating Temperature	+75 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

GTIN-13 / EAN

9349519000301

More Information

Accessories

HYYT7 924-00316
Terminal Crimp Tools
