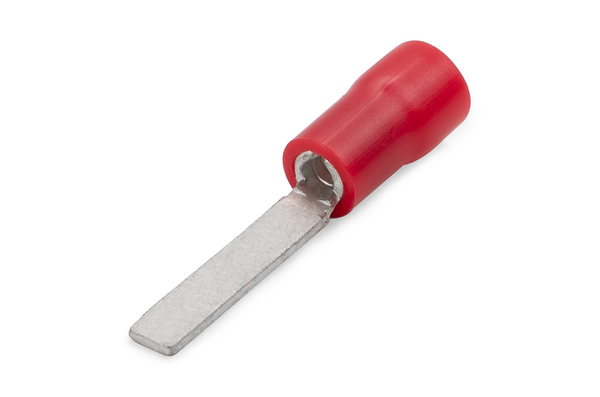

Flat blade terminal single grip, conductor sizes 0.5 - 1.5mm2, short, 100pcs, red
Art.-No. 924-00550 | 1FB14-CU/PVC-RD |

Flat blade terminal, 1FB series.

Flat Blade, Front View

Flat Blade, Side View

Recomennded for basic applications
Reinforcement Sleeve: C Type
Maximum Electrical Rating: 105°C 600V
Colour coded for easier identitfication
Additional copper sleeve for premium vibration
Copper terminal offers excellent elcetrical conductivity
PVC insulated
Packaged in resealable bags
REACH compliant

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

Flat Blade Terminals >

Base Data

Application	Single grip flat blade terminals are a reliable choice for plug-in style connections in everyday electrical setups where vibration is not an issue. The flat blade profile allows quick mating with standard connectors, making them ideal for fast-disconnect systems. PVC insulation supports electrical safety and helps reduce wire strain during installation. Use with the HYYT1 crimping tool for consistent and efficient results.
Colour	Red (RD)
Description	FLAT BLADE RED SINGLE GRIP SHORT 14.5MM PIN
Local order number	1FB14
Material	Copper (CU), Polyvinylchloride (PVC)
Max Current	19A
Max Voltage	600V
PART DESCRIPTION	1FB14-CU/PVC-RD
Package Content	100pcs.
Package Content packed in	bag
Product Family	Single Grip Pre-Insulated
Product Group	Flat Blade Terminals
Type	1FB14

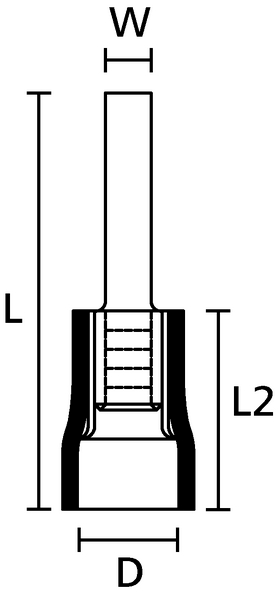

Product Dimensions

Conductor Size Range mm²	0.5-1.5mm²
Diameter (D)	4.5mm
Length (L)	24mm
Length (L2)	10mm
Length (L3)	14mm
Width (W)	3mm

Downloads

Specifications

Operating Temperature	+75 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

GTIN-13 / EAN

9349519006600

More Information

Accessories

HYYT1 924-00315
Terminal Crimp Tools
