Crimp link terminal single grip, conductor sizes 0.5 - 1.5mm2, 100pcs, red
Art.-No. 924-00560 | 1UT-CU/PVC-RD |

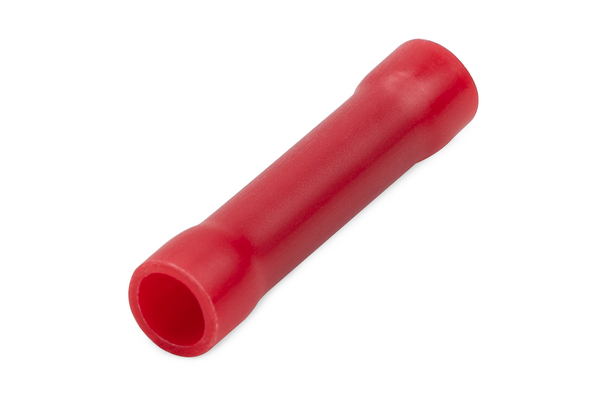

Crimp link terminal, 1UT.

Crimp Link, Side View

Recomennded for basic applications
Colour coded for easier identitfication
Additional copper sleeve for premium vibration
Copper terminal offers excellent elcetrical conductivity
PVC insulated
Packaged in resealable bags
REACH compliant

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

Crimp Link Terminals >

Base Data

Application	Single grip crimp links offer an effective way to join two wires in a straight-line connection. Designed for everyday electrical tasks, they provide a secure bond that supports consistent current flow. The insulated body protects against short circuits and general wear, while the single grip barrel holds the wire firmly in place. These crimp links are commonly used in light industrial repairs, equipment maintenance and other applications where vibration is minimal. For best results, use with the HYYT1 crimping tool to ensure a clean and reliable finish.
Colour	Red (RD)
Description	CRIMP LINK PRE-INSULATED RED S/GRIP 0.5MM²-1.5MM²
Local order number	1UT
Material	Copper (CU), Polyvinylchloride (PVC)
Max Current	19A
Max Voltage	600V
PART DESCRIPTION	1UT-CU/PVC-RD
Package Content	100pcs.
Package Content packed in	bag
Product Family	Single Grip Pre-Insulated
Product Group	Crimp Link Terminals
Type	1UT

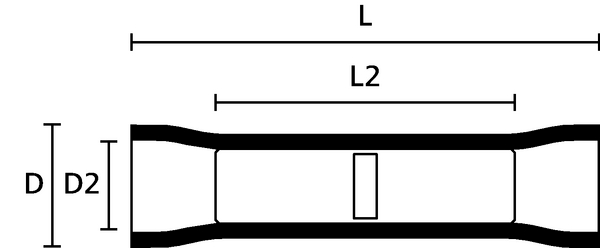

Product Dimensions

⌀ (D2)	4.3mm
Conductor Size Range mm²	0.5-1.5mm²
Diameter (D)	5.8mm
Length (L)	24mm
Length (L2)	15mm
Length (L3)	9mm

Downloads

Specifications

Operating Temperature	+75 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

GTIN-13 / EAN

9349519008246

More Information

Accessories

HYYT1 924-00315
