Bootlace Terminals

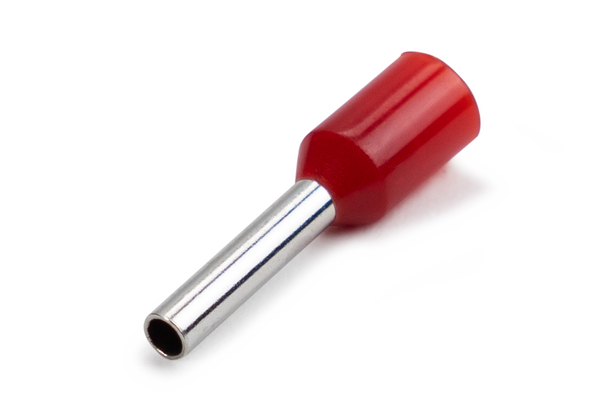

Art.-No. 924-00465 | BL1.0-12-CU/PA6-RD Details

  • Colour coded for easier identification
  • Reduces the possibility of short circuiting
  • Packaged in resealable bags
  • REACH compliant

Request your individual offer now

Application Our Bootlace Ferrule range is recommended for precise terminations and applications where fine-stranded multicore cable is used. Bootlace ferrules are used to terminate conductors by holding the strands in a thin-walled copper sleeve, which is crimped onto a conductor. A terminal crimping tool is recommended for this application.
Colour Red (RD)
Description Bootlace Ferrule
Material Copper (CU), Polyamide 6 (PA6)
PART DESCRIPTION BL1.0-12-CU/PA6-RD
Pack Content 100pcs.
Package Content packed in bag
Product Family Nylon Insulated Bootlace Ferrules
Product Group Bootlace Terminals
Type BL1.0-12
Diameter (D) 3mm
Length (L) 18mm
Length (L2) 6mm
Length (L3) 12mm
Max Voltage 600V
∅ (D2) 1.4mm
Halogen-free Yes
Operating Temperature +105 °C
ROHS compliant Yes
Specifications
