Lip Blade Terminals
Art.-No. 924-00413 | LBD1W-CU/PVC-RD |

Copied
Lip blade terminal, LBD1 series.

    • Double grip for high vibration industrial applications
    • Colour coded for easier identitfication
    • Enhanced Pull-Out Force which provides a stronger, more secure hold
    • Additional copper sleeve for premium vibration
    • Copper terminal body with PVC insulation for enhanced wire insulation
    • Packaged in a resealable bag
    • REACH compliant
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The Double Grip Lip Blade Terminals are recommended for connecting electrical conductors in challenging industrial applications. Manufactured with an additional copper sleeve and PVC insulation, for maximum vibration resistance and premium wire insulation. The HYYT7 terminal crimping tool is recommended for the application.
    Bestell Typ LBD1W
    Bezeichnung LIP BLADE RED DOUBLE GRIP WIDE 5MM BLADE
    Farbe Red (RD)
    Inhalt 100ST
    Inhalt per bag
    Material Copper (CU), Polyvinylchloride (PVC)
    Produktbezeichnung LBD1W-CU/PVC-RD
    Produktfamilie Double Grip Pre-Insulated
    Produktgruppe Lip Blade Terminals
    Typ LBD1W

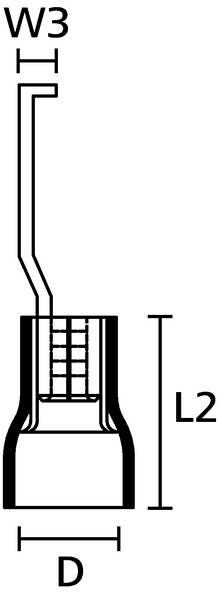

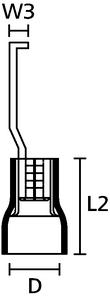

    ⌀ D 4.3mm

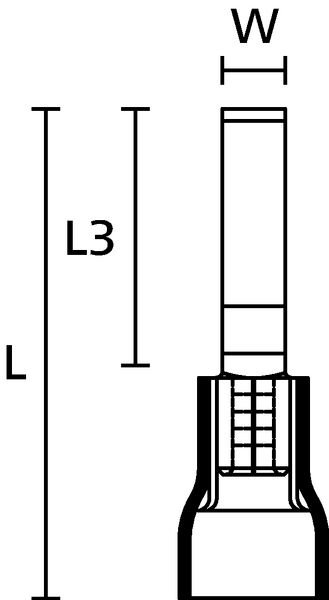

    Breite (W) 4.6mm
    Leiterquerschnitt (mm²) von bis 0.5-1.5mm²
    Länge (L) 28.3mm
    Länge (L2) 10.5mm
    Länge (L3) 17.5mm
    Nennspannung 600V
    Nennstrom 19A
    Stegbreite (W3) 2.2mm
    Betriebstemperatur +75 °C
    ROHS konform Yes
    Zulassungen/Normen
    EAN / GTIN 9349519000486
    Ursprungsland CN
    Zollwarentarif Nr. 85369010
