Lip Blade Terminals
Art.-No. 924-00414 | LBD2N-CU/PVC-BU |

Copied

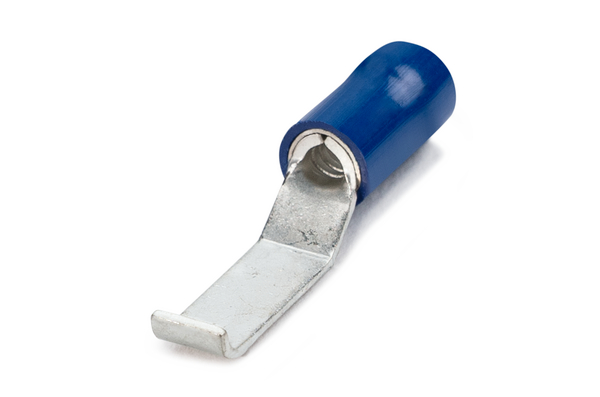

Lip blade terminal, LBD2 series.

    • Double grip for high vibration industrial applications
    • Colour coded for easier identitfication
    • Enhanced Pull-Out Force which provides a stronger, more secure hold
    • Additional copper sleeve for premium vibration
    • Copper terminal body with PVC insulation for enhanced wire insulation
    • Packaged in a resealable bag
    • REACH compliant
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The Double Grip Lip Blade Terminals are recommended for connecting electrical conductors in challenging industrial applications. Manufactured with an additional copper sleeve and PVC insulation, for maximum vibration resistance and premium wire insulation. The HYYT7 terminal crimping tool is recommended for the application.
    Bestell Typ LBD2N
    Bezeichnung LIP BLADE BLUE DOUBLE GRIP NARROW 3MM BLADE
    Farbe Blue (BU)
    Inhalt 100ST
    Inhalt per bag
    Material Copper (CU), Polyvinylchloride (PVC)
    Produktbezeichnung LBD2N-CU/PVC-BU
    Produktfamilie Double Grip Pre-Insulated
    Produktgruppe Lip Blade Terminals
    Typ LBD2N
    ⌀ D 5.2mm
    Breite (W) 2.8mm
    Leiterquerschnitt (mm²) von bis 1.5-2.5mm²
    Länge (L) 28.5mm
    Länge (L2) 11mm
    Länge (L3) 17.5mm
    Nennspannung 600V
    Nennstrom 27A
    Stegbreite (W3) 2.2mm
    Betriebstemperatur +75 °C
    ROHS konform Yes
    Zulassungen/Normen
    EAN / GTIN 9349519000493
    Ursprungsland CN
    Zollwarentarif Nr. 85369010
