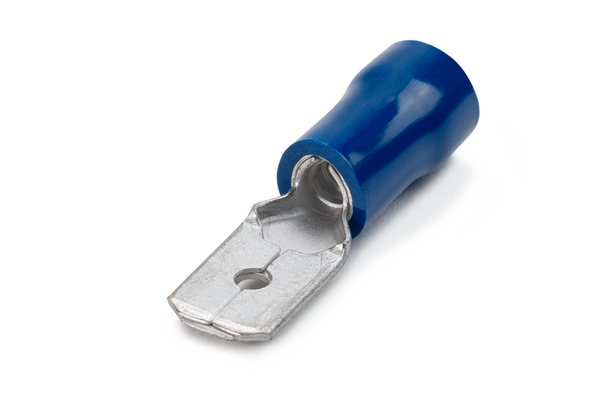

Quick disconnect male funnel entry terminal, conductor sizes 1.5 - 2.5mm2, 100pcs, blue
Art.-No. 924-00419
| QDM2-6-BS/PVC-BU
|
Copied
- Double grip for high vibration industrial applications
- Colour coded for easier identitfication
- Enhanced Pull-Out Force which provides a stronger, more secure hold
- Additional copper sleeve for premium vibration
- Copper terminal body with PVC insulation for enhanced wire insulation
- Packaged in resealable bags
- REACH compliant
Request your individual offer now
Request quote
More products in this product group:
| Application | Quick disconnect male terminals are perfect for setups where wires are connected and disconnected often-whether due to movement, reconfiguration or routine maintenance, such as in control panels or lighting systems. The funnel entry guides the wire smoothly into position, making installation faster and reducing the risk of misalignment. When paired with any HellermannTyton QDF series connector and crimped using the HYYT7 tool, these terminals deliver consistent, secure connections that hold up under regular use and vibration. |
| Colour | Blue (BU) |
| Description | QC DISCONNECTS MALE FUNNEL BLUE D/GRIP 6.4 X 0.8MM |
| Local order number | QDM2-6 |
| Material | Brass (BS), Polyvinylchloride (PVC) |
| Max Current | 15A |
| Max Voltage | 300V |
| PART DESCRIPTION | QDM2-6-BS/PVC-BU |
| Package Content | 100pcs. |
| Package Content packed in | bag |
| Product Family | Double Grip Pre-Insulated Terminals |
| Product Group | Quick Disconnect Male Funnel Entry |
| Type | QDM2-6 |
