Quick disconnect male funnel entry terminal, conductor sizes 0.5 - 1.5mm2, 100pcs, red
Art.-No. 924-00418 | QDM1-6-BS/PVC-RD |

Copied

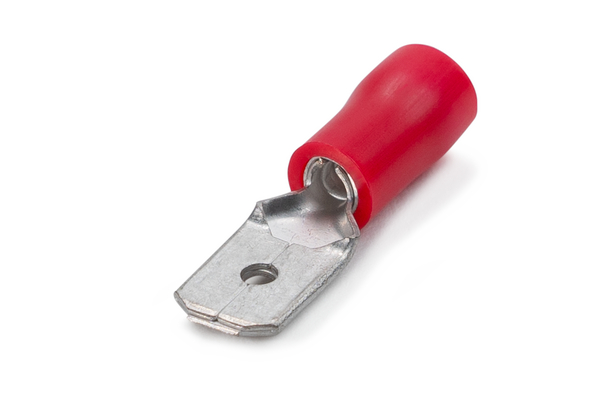

Quick disconnect male terminal, QDM1-6.
QDM series, Front View
QDM series, Side View

    • Three conductor sizes for versatile wiring needs
    • Colour-coded for easier identification
    • Enhanced pull-out force provides a stronger, more secure hold
    • Widely used in control panels, power distribution, automotive and heavy machinery
    • Manufactured with an additional copper sleeve to allow for premium vibration resistance
    • Packaged in a resealable bag
    • REACH compliant
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Quick disconnect male terminals are perfect for setups where wires are connected and disconnected often-whether due to movement, reconfiguration or routine maintenance, such as in control panels or lighting systems. The funnel entry guides the wire smoothly into position, making installation faster and reducing the risk of misalignment. When paired with any HellermannTyton QDF series connector and crimped using the HYYT7 tool, these terminals deliver consistent, secure connections that hold up under regular use and vibration.
    Colour Red (RD)
    Description Quick disconnect - male funnel double grip, conductor size 0.5 - 1.5mm² - TAB 6.4 x 0.8mm, red
    Local order number QDM1-6
    Material Brass (BS), Polyvinylchloride (PVC)
    Max Current 10A
    Max Voltage 300V
    PART DESCRIPTION QDM1-6-BS/PVC-RD
    Package Content 100pcs.
    Package Content packed in bag
    Product Family Double Grip Pre-Insulated Terminals
    Product Group Quick Disconnect Male Funnel Entry
    Type QDM1-6
    Conductor Size Range mm² 0.5-1.5mm²
    Diameter (D) 4.1mm
    Length (L) 22mm
    Length (L2) 10.5mm
    Length (L3) 11.5mm
    Width (W) 6.3mm
    Operating Temperature +75 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 9349519000530
