Double Grip Pre-Insulated Terminals
Art.-No. 924-00377 | RD2-6-CU/PVC-BU Details

  • Double grip for high vibration industrial applications
  • Colour coded for easier identitfication
  • Additional copper sleeve for premium vibration
  • Copper terminal body with PVC insulation for enhanced wire insulation
  • Packaged in resealable bags
  • REACH compliant
Show more

Request your individual offer now

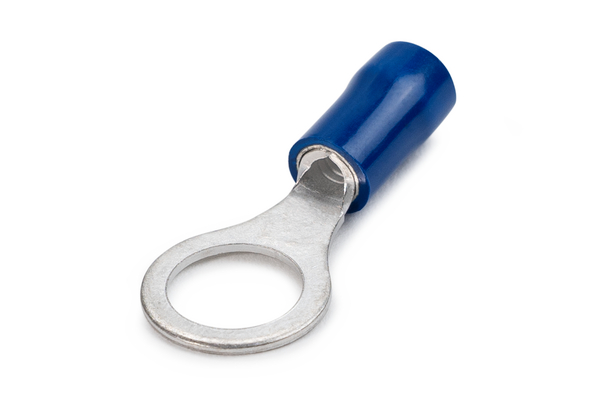

Application The Double Grip Ring Terminals are recommended for connecting electrical conductors in challenging industrial applications. Manufactured with an additional copper sleeve and PVC insulation, for maximum vibration resistance and premium wire insulation. The Ring Terminal remains fully fixed during the application and as the screw is inserted through the tongue hole. A terminal crimping tool is recommended for the application.
Colour Blue (BU)
Description RING TERMINAL BLUE D/GRIP 6MM HOLE 1.5MM²-2.5MM²
Material Copper (CU), Polyvinylchloride (PVC)
PART DESCRIPTION RD2-6-CU/PVC-BU
Pack Content 100pcs.
Package Content packed in bag
Product Family Ring Terminals
Product Group Double Grip Pre-Insulated Terminals
Type RD2-6
Conductor Size Range mm² 1.5-2.5mm²

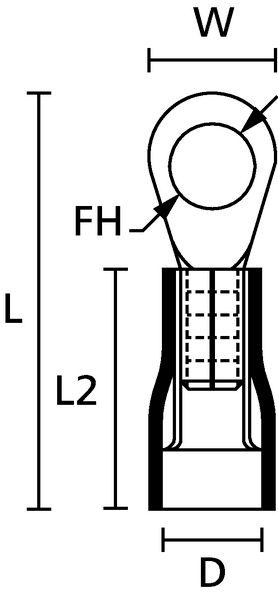

Diameter (D) 5.3mm
Length (L) 27.6mm
Length (L2) 10.7mm

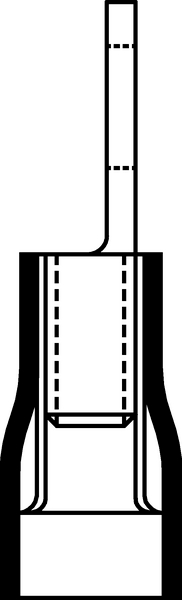

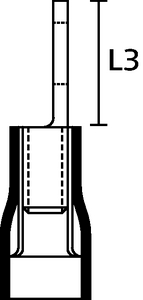

Length (L3) 16.9mm
Max Current 27A
Max Voltage 600V
Width (W) 12mm
for Hole ∅ (FH) 6.4 mm
Operating Temperature +75 °C
ROHS compliant Yes
Specifications
