Fixing tie for hole (oval), outside serrated, Ø2.0-50.0mm, grey, 500pcs.
Артикулен 157-00205 | T50ROSFTOVAL25A-PA66HIRHS-GY Подробности

  • Bundling and fixing solution
  • Ideal combination of materials and design
  • Different positions of the fixing anchor are available to fit installation space
  • 1-Piece Fixing Tie with defined offset 12.5 and 25.0 mm

Заявете вашата индивидуална оферта сега

Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO9, EVO9SP
Colour Grey (GY)
Fixation Method Fir Tree for oval holes
Identification Plate Position none
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Pack Cont. 500pcs.
Package Content packed in carton

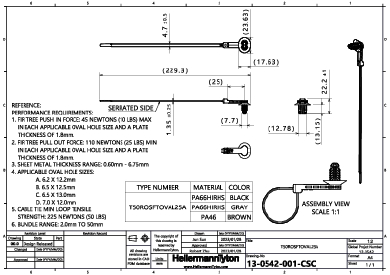

PART DESCRIPTION T50ROSFTOVAL25A-PA66HIRHS-GY
Product Family with offset 12.5 and 25.0 mm
Product Group 1-piece fixing ties with fir tree, with disc, with stand-off, for oval holes
Releasable Closure (Yes/No) No
Variant Outside Serrated
Bundle Diameter max (metric) 50.0mm
Bundle ∅ 2.0-50.0mm
Bundle ∅ min. 2.0mm
Disc ∅ 17.63 x 23.63mm
Fixing Hole Shape Oval
for Hole ∅ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
for Panel Thickness min - max 0.6 - 6.8 mm
for Panel Thickness min - max 0 - 0.3 "
Height (H) 13.15mm
Length (L) 229.3mm
Length (L2) 25.0mm
Min.Tensile Strength 222.4N
Offset Length 25.0mm
Panel Thickness max. 0.6 - 6.75mm
Thickness (T) 1.35mm
Weight/Unit 0.00317kg
Width (W) 4.7mm
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +110 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised (Yes/No) No
Country of Origin US
Customs Number 39269097
GTIN-13 / EAN 4031026489902
Packaging 1 - Qty 500
Packaging 1 - Type bag
Packaging 1 - Weight (kg) 1.585001kg
Packaging 3 - Height (m) 0.21589999999999998m
Packaging 3 - Length (m) 0.606425m
Packaging 3 - Qty 2000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.052
Packaging 3 - Weight (kg) 7.200004kg
Packaging 3 - Width (m) 0.396875m
Packaging 4 - Height (m) 1.224m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 30000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.175
Packaging 4 - Weight (kg) 129.0kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
