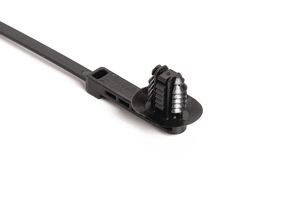

Fixing tie for hole (oval), outside serrated, Ø2.0-50.0mm, black, 500pcs.
Артикулен 157-00323 | T50ROSFTOVALIL25A-PA66HIRHSUV-BK Подробности

  • Bundling and fixing solution
  • Ideal combination of materials and design
  • Different positions of the fixing anchor are available to fit installation space
  • 1-Piece Fixing Tie with defined offset 12.5 and 25.0 mm

Заявете вашата индивидуална оферта сега

Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO9, EVO9SP
Colour Black (BK)
Fixation Method Fir Tree for oval holes
Identification Plate Position none
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Pack Cont. 500pcs.
Package Content packed in carton
PART DESCRIPTION T50ROSFTOVALIL25A-PA66HIRHSUV-BK
Product Family with offset 12.5 and 25.0 mm
Product Group 1-piece fixing ties with fir tree, with disc, with stand-off, for oval holes
Releasable Closure (Yes/No) No
Variant Outside Serrated
Bundle Diameter max (metric) 50.0mm
Bundle ∅ 2.0-50.0mm
Bundle ∅ min. 2.0mm
Disc ∅ 17.63 x 23.63mm
Fixing Hole Shape Oval
for Hole ∅ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
for Panel Thickness min - max 0.6 - 6.8 mm
for Panel Thickness min - max 0 - 0.3 "
Height (H) 12.85mm
Length (L) 232.3mm
Length (L2) 25.0mm
Min.Tensile Strength 225N
Offset Length 25.0mm
Panel Thickness max. 0.6 - 6.75mm
Thickness (T) 1.35mm
Weight/Unit 0.003107kg
Width (W) 4.70mm
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised (Yes/No) Yes
Country of Origin US
Customs Number 39269097
GTIN-13 / EAN 4031026587943
Packaging 1 - Height (m) 0.095m
Packaging 1 - Length (m) 0.37m
Packaging 1 - Qty 500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.01019
Packaging 1 - Weight (kg) 1.553501kg
Packaging 1 - Width (m) 0.29m
Packaging 3 - Height (m) 0.219075m
Packaging 3 - Length (m) 0.606425m
Packaging 3 - Qty 2000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0529
Packaging 3 - Weight (kg) 6.984004kg
Packaging 3 - Width (m) 0.3984625m
Packaging 4 - Height (m) 1.239m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 30000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.189
Packaging 4 - Weight (kg) 125.76kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
