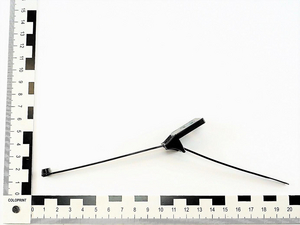

Fixing tie for screw fixation, inside serrated, ⌀10.0-23.0mm, black, 500pcs.
Артикулен 156-01425 | X80RHDM6O-PA66HS/PA66HIRHS-BK |

Copied
These HDM (Heavy duty mount) are suitable for assembling on screws.
HDM with cable tie (L = length of the tie

    Този продукт вече не се предлага.
    • Pre-assembled 2-piece fixing tie
    • Cable tie head can be moved after bundling
    • Fixing element for corrugated tubing for Nominal diameters from 10.0 - 23.0 mm
    • A suitable alternative for metal clamps
    • Withstands vibrations and displacement forces
    • High tightening torque through metal bushing
    Добавяне към списъка с наблюдавани

    Заявете вашата индивидуална оферта сега

     Оферта
    Downloads
    Application Used in the automotive and truck industry for harness fixing in the engine body, these parts offer solutions in many other industrial applications with difficult environment.
    Colour Black (BK)
    Fixation Method Weld Stud Fixing with metal inlay
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Min.Tensile Strength 355N
    Mounting Screw Type M6 Screw
    PART DESCRIPTION X80RHDM6O-PA66HS/PA66HIRHS-BK

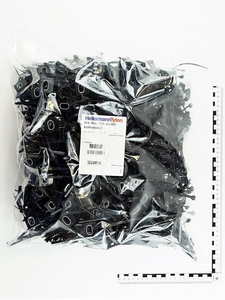

    Package Content 500pcs.
    Package Content packed in bag
    Product Family HDM-Series
    Product Group 2-piece fixing ties for heavy duty applications, for screws
    Short Description 2-piece fixing tie 200x4.6, for heavy duty applications, for screws, black
    Tie Closure plastic pawl
    Type X80RHDM6O
    Variant Inside Serrated
    Weight/Unit 0.0057kg
    Bundle ⌀ 10.0-23.0mm
    Bundle ⌀ max. 23.0mm
    Bundle ⌀ min. 10.0mm
    Height (H) 15.5mm
    Length (L) 200.0mm
    Length (L2) 34.7mm
    Stud ⌀ M6
    Width (W) 4.6mm
    Width (W2) 26.0mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026511016
    Packaging 1 - Height (m) 0.185m
    Packaging 1 - Length (m) 0.47m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.04738775m³
    Packaging 1 - Weight (kg) 2.893597kg
    Packaging 1 - Width (m) 0.545m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 12.394388kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 24000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 169.752kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
