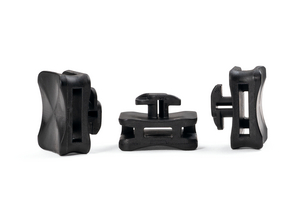

Aluminium frame mount for Item, W=6.2mm, T=2.75mm, black, 500pcs.
Nr. articol 151-03248 | ACFM8W6.2PT2.75-PA66/6HIRHS-BK Detalii

  • Quick and easy to install (quarter-turn fixing)
  • 2-way cable tie entry, allowing cables to be fixed lengthways or sideways to the profile
  • Curved design ensures that cables are supported centrally to the mount
  • Secure fixing once installed
  • Suitable for cable ties up to 8 mm wide
arată mai mult
Dimensiunea pachetului

Solicitați acum oferta dumneavoastră individuală

Application The ACFM8W6.2PT2.75 is specially designed for the ITEM profile with a T-slot width of 6 mm and external dimensions of 30 mm. The fact that no mounting hole is necessary, the installation and handling of the ACFM is very simple. The Aluminium frame mount is firmly fixed at the favoured place with a quarter turn and then fits firmly. Can be easily loosened and repositioned at any time.
Colour Black (BK)
For Ties T50 T80 T120 X80 X120 Q50 Q120
Material Polyamide 6.6/6, high impact modified, heat stabilised (PA66/6HIRHS)
Pack Cont. 500pcs.
Package Content packed in bag
PART DESCRIPTION ACFM8W6.2PT2.75-PA66/6HIRHS-BK
Product Family For ITEM 6 frame
Product Group Fixing elements for aluminium frames
Short Description The ACFM8W6.2PT2.75 is specially designed for the ITEM profile with a T-slot width of 6 mm and external dimensions of 30 mm.
for Panel Thickness min - max 2.8 - 2.8 mm

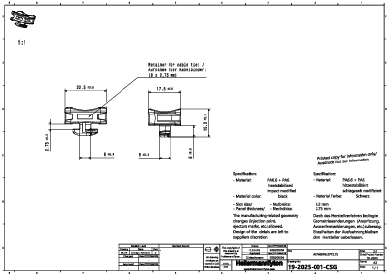

Height (H) 9.3mm
Height (H2) 15.3mm
Length (L) 17.5mm
Panel Thickness max. 2.75mm
Strap Width max. (G) 8.0mm
Weight/Unit 0.0023kg
Width (W) 22.5mm
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026646497
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.01845
Packaging 1 - Weight (kg) 1.171815kg
Packaging 1 - Width (m) 0.41m
Packaging 3 - Height (m) 0.184m
Packaging 3 - Length (m) 0.58m
Packaging 3 - Qty 4000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0406
Packaging 3 - Weight (kg) 9.97452kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 96000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 260.424kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 39121717
