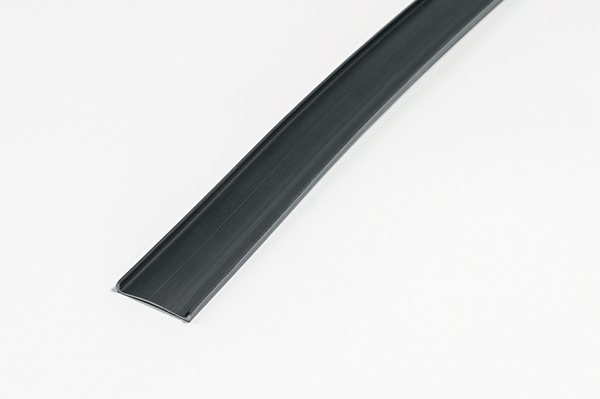

Protective channel for stainless steel ties : LFPC103
Protective Channel for Stainless Steel Ties 10.3mm wide black, Număr articol: 111-94000
Caracteristici
- LFPC channel, manufactured from Polyolefin
- Works with MBT-, MST-, MLT- and AMT-Series
- Smooth surface protects bundle against chafing caused by vibrations and shocks
- Can be cut from roll to any length
- Halogenfree
- Flame retardant
Certificări & aprobări
Aplicație

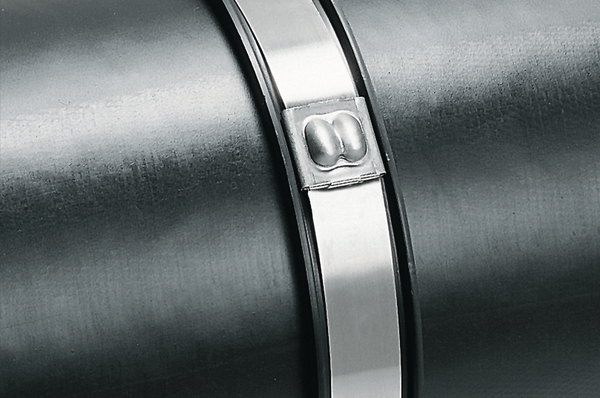

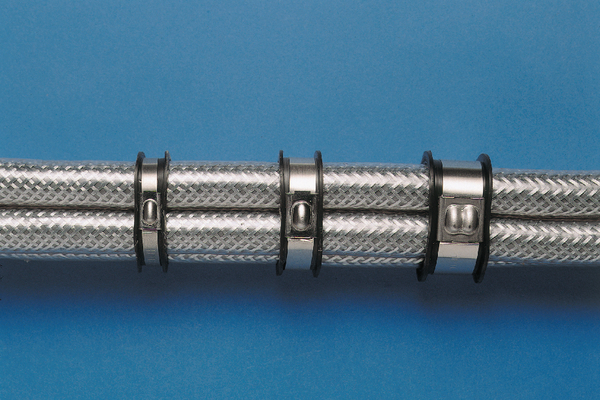

When used in conjunction with the MBT, MST, MLT and AMT range of stainless steel cable ties this channel gives the cable protection against chafing, vibration and shock. Ideal for use in arduous conditions such as those found on board ships, oil rigs or in nuclear power stations.
LFPC-Series este adecvat pentru următoarele piețe și industrii
-
Electronics Industry
-
Shipbuilding
-
Defence Industry
Mai multe produse în acest grup de produse
Protective channel for stainless steel ties >| Application 2 | Application- Naval, aerospace, offshore, railway and construction industries as a protection where shock or vibration are experienced. -40 °C to +90 °C, V0 rated, 160 °C for 200hrs. |
| Colour | Black (BK) |
| Features and Benefits | Manufactured from Polyolefin, this channel is halogen free and flame retardant. The LFPC is a protective channel specifically designed for use with Stainless Steel ties where limited fire hazard materials are required. When used in conjunction with the range of stainless steel ties, gives protection against chafing, vibration and shock. |
| For Ties | MBTH |
| Identification Plate Position | none |
| Pack Cont. | 25m |
| Package Quantity per | metre |
| PART DESCRIPTION | LFPC103-PO-BK |
| Product Family | LFPC-Series |
| Product Group | Protective channel for stainless steel ties |
| Releasable Closure (Yes/No) | No |
| Short Description | Protective Channel for Stainless Steel Ties 10.3mm wide black |
| Type | LFPC103BK |
| Variant | No Serration |
|
|
|
| Length (L) | 25000mm |
| Thickness (T) | 1.1mm |
| Width (W) | 10.3mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V0 |
| Halogenfree | Yes |
| Hazardous good | No |
| Limited Fire Hazard | Yes |
| Material | Polyolefin (PO) |
| Nato number | 5340-12-362-1400 |
| Operating Temperature - °C | -40 °C to +90 °C, (+160 °C, for 200 h) |
| Specifications |
|
| Specifications | DEF STAN 61-12 (Part 31) issue 2 |
|
|
|
| EAN / GTIN | 5022660514036 |
| Packaging 1 - Height (m) | 0.07m |
| Packaging 1 - Length (m) | 0.3m |
| Packaging 1 - Qty | 25 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0063m³ |
| Packaging 1 - Weight (kg) | 0.75kg |
| Packaging 1 - Width (m) | 0.3m |
| Weight | 0.75kg |
| ETIM 6.0 | EC000046 |
| ETIM 7.0 Key | EC000046 |
