Fixing tie for hole (round), Ø2.0-50.0mm, black, 4000pcs.
Nr. articol 157-00506 | T50ROSFTQM6-PA66HIRHSUV-BK Detalii

  • Cable tie head always situated in defined position
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
arată mai mult
Dimensiunea pachetului

Solicitați acum oferta dumneavoastră individuală

Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.
Application Tool EVOcut, MK9P, MK9P w/ Upper air, MK10-SB, MK21, EVO7, EVO7SP, EVO7i, EVO9, EVO9SP, EVO9HT
Colour Black (BK)
Fixation Method Fir tree for round holes
Identification Plate Position none
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Pack Cont. 4000pcs.
Package Content packed in carton
PART DESCRIPTION T50ROSFTQM6-PA66HIRHSUV-BK
Product Family Fir tree parts FT6
Product Group 1-piece fixing ties with fir tree, with disc, for round holes
Releasable Closure (Yes/No) No
Short Description 1-piece fixing ties with fir tree, with disc, for round holes 203x5 mm, high impact modified, heat and uv-stabilised, black
Tie Closure plastic pawl
Bundle Diameter max (metric) 50.0mm
Bundle ∅ 2.0-50.0mm
Bundle ∅ min. 2.0mm

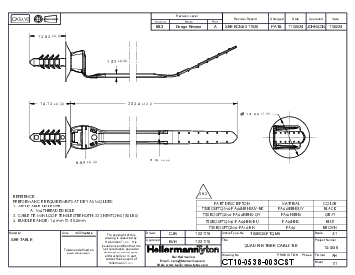

Diameter (D) 6.0mm
Disc ∅ 16.0mm
for Hole ∅ (FH) M6
for Panel Thickness min - max 3.3 - 7 mm
for Panel Thickness min - max 0.1 - 0.3 "
Height (H) 13.8mm
Length (L) 203.2mm
Length (L2) 16.13mm
Min.Tensile Strength 222.4N
Panel Thickness max. 3.25 - 7.0mm
Thickness (T) 1.5mm
Weight/Unit 0.001689kg
Width (W) 5.08mm
∅ D 0.25"
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C
Specifications
UL Recognized (US and Canada) No
UV-Stabilised (Yes/No) Yes
Country of Origin US
Customs Number 39269097
GTIN-13 / EAN 4031026657608
Packaging 1 - Qty 4000
Packaging 1 - Type bag
Packaging 1 - Weight (kg) 6.756001kg
Packaging 3 - Height (m) 0.3730625m
Packaging 3 - Length (m) 0.587375m
Packaging 3 - Qty 4000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.063
Packaging 3 - Weight (kg) 7.576001kg
Packaging 3 - Width (m) 0.2873375m
Packaging 4 - Height (m) 1.263m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 48000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.212
Packaging 4 - Weight (kg) 111.912kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
