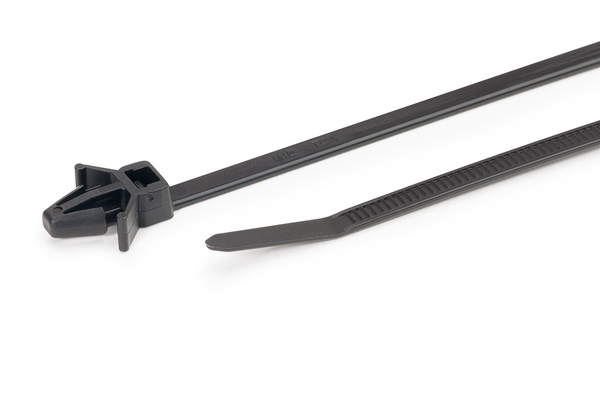

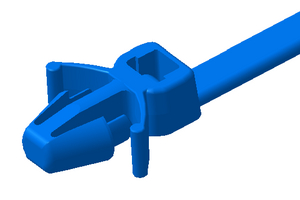

Fixing tie for hole (round), inside serrated, Ø1.5-45.0mm, natural, 100pcs.
Nr. articol 111-85729 | T50RSFM-PA66-NA Detalii

  • Easy to assemble without the need for a tool
  • Cable tie head always situated in defined position
  • Arrowhead simply locks into place
  • Supporting legs provide a secure and firm fixing in areas where space is limited

Solicitați acum oferta dumneavoastră individuală

Application For bundling and fixing of cable harnesses, pipes and hoses in many different industries, including automotive, aerospace, white goods manufacturing and panel building.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO9, EVO9SP
Colour Natural (NA)
Fixation Method arrowhead
Identification Plate Position none
Material Polyamide 6.6 (PA66)
Pack Cont. 100pcs.
Package Content packed in pcs.
PART DESCRIPTION T50RSFM-PA66-NA
Product Family for round holes
Product Group 1-Piece Fixing Ties with Arrowhead, with Wings
Releasable Closure (Yes/No) No
Short Description 1-Piece Fixing Tie with Arrowhead and Wings PA66 200x4.7 natural
Tie Closure plastic pawl
Variant Inside Serrated
Bundle Diameter max (metric) 45.0mm
Bundle ∅ 1.5-45.0mm
Bundle ∅ min. 1.5mm
for Hole ∅ (FH) 6.0 - 6.6 mm
for Panel Thickness min - max 0.7 - 3 mm
for Panel Thickness min - max 0 - 0.1 "
Length (L) 205mm
Min.Tensile Strength 225N
Panel Thickness max. 0.7 – 3.0mm
Thickness (T) 1.3mm
Weight/Unit 0.00167kg
Width (W) 4.6mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
Specifications
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 4031026107431
Packaging 1 - Height (m) 0.038m
Packaging 1 - Length (m) 0.15m
Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00185
Packaging 1 - Weight (kg) 0.167001kg
Packaging 1 - Width (m) 0.325m
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Qty 4000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Weight (kg) 7.48204kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 80000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 170.64kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
