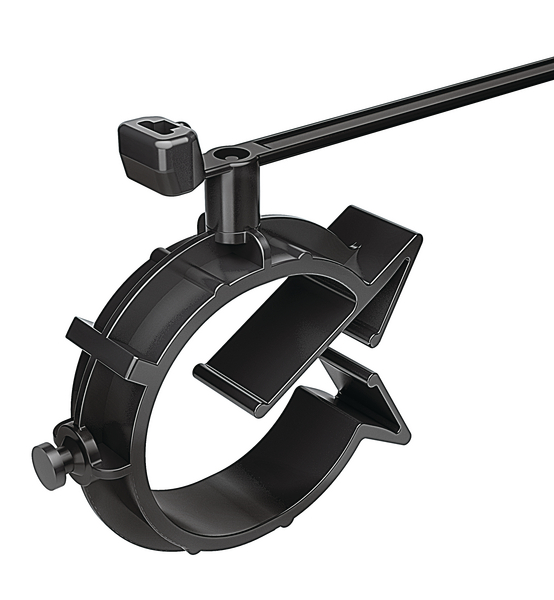

Fixing tie with pipe/tube holder, inside serrated, ⌀2.0-50.0mm, black, 250pcs.
Nr. articol 156-00303 | T50SMVCOC25-31-PA66HS/PA66HIRHS-BK |

Copied
T50SVCOC/T50SMVCOC
T50SMVCOC25-31

    • Multiple routing
    • Rotative
    • Flexibilty
    Adăugați la lista de urmărire

    Solicitați acum oferta dumneavoastră individuală

     Solicitați oferta
    Downloads Descărcare CAD

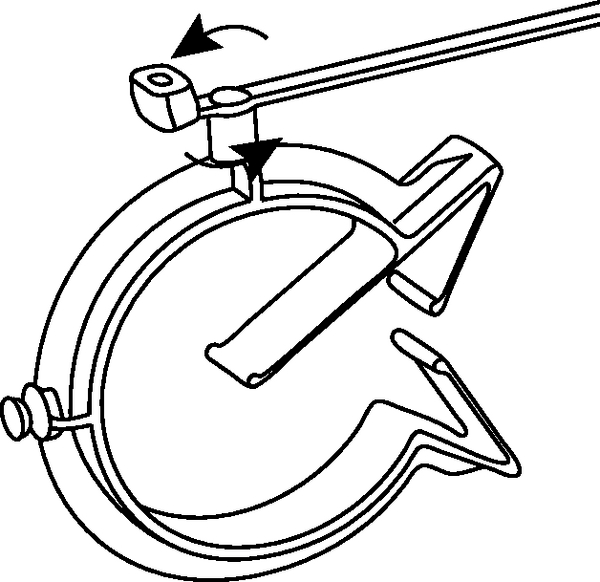

    Application These inside serrated fixing ties provide the opportunity to attach a wire or hose to an existing harness. Offering a full 360 degrees rotation, the wire/hose can be oriented in any direction in relation to the main harness.
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Key product features rotatable, for multiple routing, removable
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Min.Tensile Strength 222N
    PART DESCRIPTION T50SMVCOC25-31-PA66HS/PA66HIRHS-BK

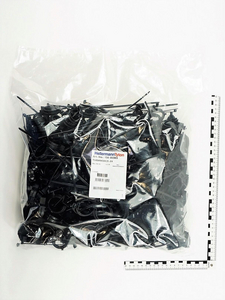

    Package Content 250pcs.
    Package Content packed in bag
    Product Group 2-Piece Fixing Ties with Pipe Clip, twistable 360°
    Short Description Fixing tie with pipe holder in PA66HS/PA66HIRHS, black, T50SMVCOC25-31
    Type T50SMVCOC25-31
    Weight/Unit 0.005982kg
    Attach to ⌀ 25.0 - 31.0
    Bundle ⌀ 2.0-50.0mm
    Bundle ⌀ max. 50.0mm
    Bundle ⌀ min. 2.0mm
    Length (L) 210mm
    Thickness (T) 1.35mm
    Width (W) 4.7mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026278957
    Packaging 1 - Height (m) 0.135m
    Packaging 1 - Length (m) 0.315m
    Packaging 1 - Qty 250
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0161595m³
    Packaging 1 - Weight (kg) 1.539097kg
    Packaging 1 - Width (m) 0.38m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 1000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 6.976388kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 12000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 104.736kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
