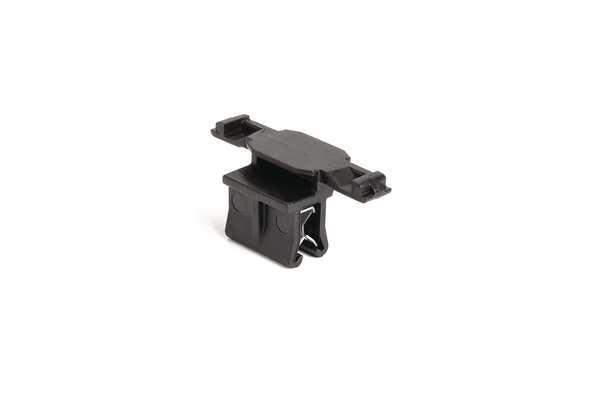

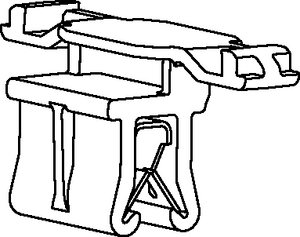

Connector clip for hole (round), EWCAP-005-11, black, 5000pcs.
Nr. articol 151-01290
| EC52-PA66HIRHSUV-BK
|
Copied
- Simply push per hand onto a plastic edge
- Connector easily installed by simply pushing into place
- Connection can be released (non-destructive)
- Integrated metal clamp holds clip firmly in place
- Clamp consists of double tempered spring steel
- Ideal for applications where holes or adhesives are not suitable
arată mai mult
Arată mai puțin
Solicitați oferta
Mai multe produse în acest grup de produse:
| Application | Connector clip for edges, for fastening cables and wires in places where screwing or adhering is not possible. |
| Colour | Black (BK) |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | EC52-PA66HIRHSUV-BK |
| Package Content | 5000pcs. |
| Package Content packed in | carton |
| Product Family | 1 - 3 mm, 1.5 - 4 mm and 3 - 6 mm |
| Product Group | Connector Clips for Edges |
| Type | EC52 |
| Type of connection | USCAR11 |
| UV-Stabilised | Yes |
| Weight/Unit | 0.001967kg |
| ELV compliant (Article 4 - 2) | Yes |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| Operating Temperature, 1000h | +160 °C |
| Operating Temperature, 5000h | +125 °C |
| Operating Temperature, 500h | +165 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026487748 |
| Packaging 1 - Qty | 5000 |
| Packaging 1 - Type | bag |
| Packaging 1 - Weight (kg) | 9.835001kg |
| Packaging 3 - Height (m) | 0.20002499999999998m |
| Packaging 3 - Length (m) | 0.51117499999999995m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0318m³ |
| Packaging 3 - Weight (kg) | 10.425001kg |
| Packaging 3 - Width (m) | 0.31115m |
| Packaging 4 - Height (m) | 1.144m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 100000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.098m³ |
| Packaging 4 - Weight (kg) | 230.5kg |
| Packaging 4 - Width (m) | 0.8m |
