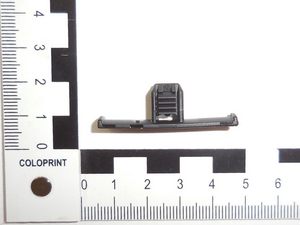

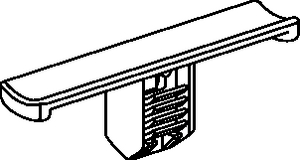

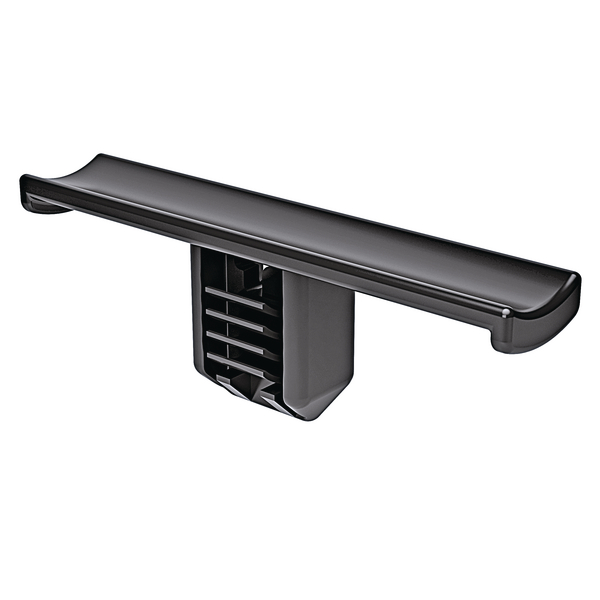

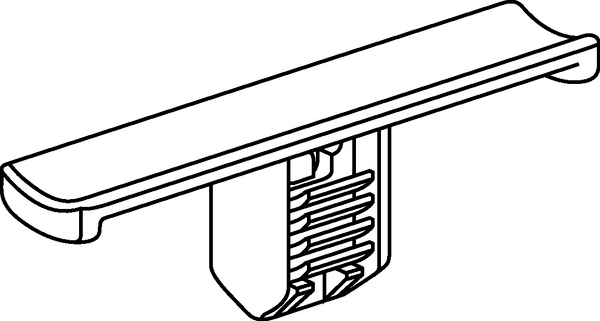

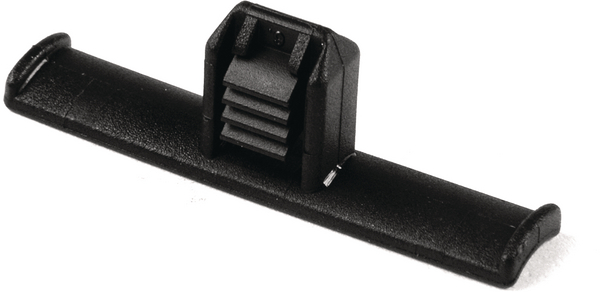

Bundling clip for hole (oval), L=40.0mm, black, 1000pcs.
Nr. articol 155-16301 | WICKELCLIP-VDS-PA66HIRHS-BK |

Copied
Oval fir tree firmly secures clip to mounting surface.
Bundling Clips with fir tree for a variety of applications with a wide range of panel thicknesses and drilled holes.

    • Especially for banding of cables and cable harnesses
    • Fastened onto bundling bar with cable ties or adhesive tape
    • Various base geometries for wide variety of metal gauges and bore diameters
    • Versions for oval holes feature anti-twist protection
    Dimensiunea pachetului
    Adăugați la lista de urmărire

    Solicitați acum oferta dumneavoastră individuală

     Solicitați oferta
    Downloads Descărcare CAD
    Application These cable clips are particularly popular in the automotive industry, as cable harnesses can be easily installed in different areas of the vehicle. Due to their flat and lightweight design, they are an optimal solution for limited spaces.
    Anti rotation (Yes / No) YES
    Colour Black (BK)
    Fixation Method Fir Tree for oval holes
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION WICKELCLIP-VDS-PA66HIRHS-BK
    Package Content 1000pcs.
    Package Content packed in pack
    Product Family for oval holes
    Product Group Bundling Clips with Fir Tree, for Oval Holes
    Short Description Bundling Clip 40 mm, with fir tree, high impact modified, heat stabilised, black
    Type WICKELCLIP-VDS
    UV-Stabilised No
    Weight/Unit 0.000881kg
    Wings on clip base (Yes / No) YES
    Bundling Bar Length 1.57"
    Bundling Bar Length 40.0mm
    Fixing Hole Shape Oval
    Height (H) 12.2mm
    Height (H2) 10.7mm
    Length (L) 40.0mm
    Length (L2) 9.6mm
    Panel Thickness 0.6 - 2.5mm
    Width (W) 8.0mm
    for Hole ⌀ (FH) 6.3 x 9.0 mm, 6.3 x 10.0 mm
    for Panel Thickness min - max 0.6 - 2.5 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026215129

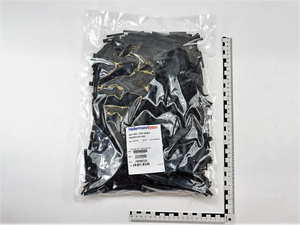

    Packaging 1 - Height (m) 0.045m
    Packaging 1 - Length (m) 0.34m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.004284m³
    Packaging 1 - Weight (kg) 0.899kg
    Packaging 1 - Width (m) 0.28m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 10000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 9.952kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.204m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 200000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.156m³
    Packaging 4 - Weight (kg) 220.04kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
