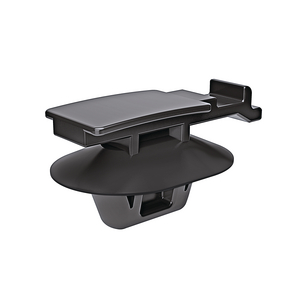

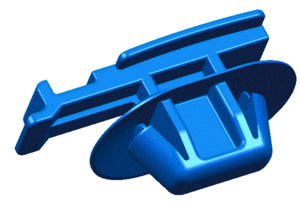

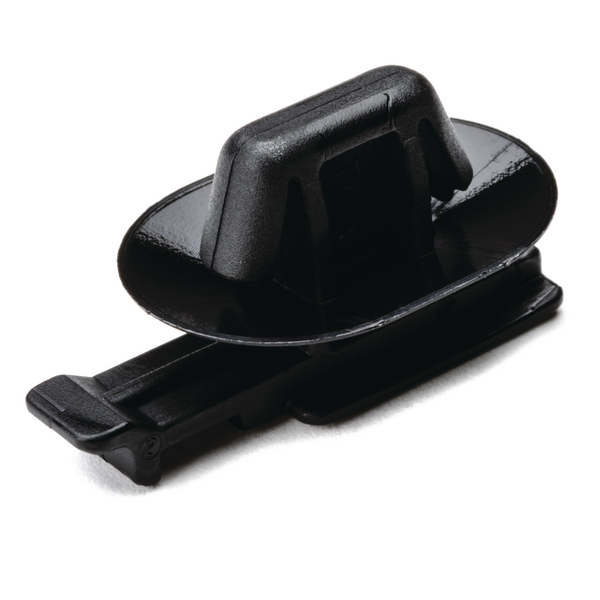

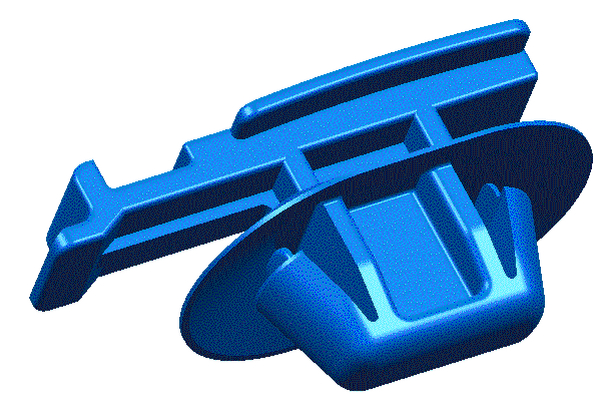

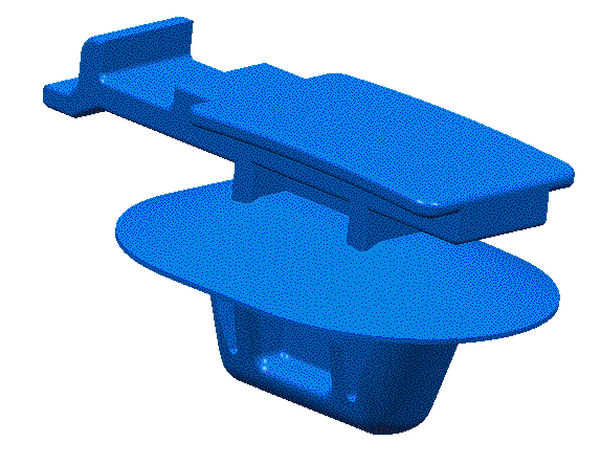

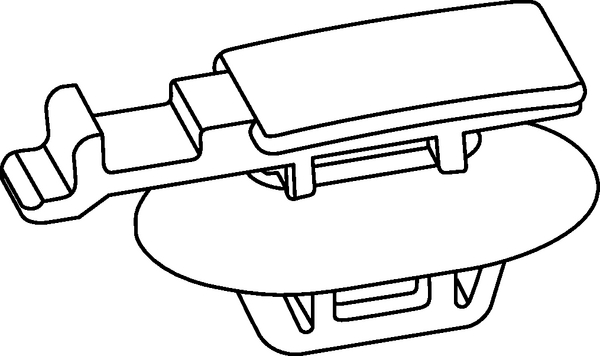

Connector clip for hole (oval), EWCAP-005-11, black, 500pcs.
Nr. articol 151-00513
| YCCSFT62122-PA66HIRHS-BK
|
Copied
- Easy to install by simply pushing into place
- Connection can be released (non-destructive)
- One fit tree foot part can be used for a variety of panel thicknesses
- Disc covers the hole to prevent dust and dirt gaining access
Solicitați oferta
Mai multe produse în acest grup de produse:
Acest produs face parte din:
| Application | The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement |
| Anti rotation (Yes / No) | YES |
| Colour | Black (BK) |
| Fixation Method | arrowhead |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | YCCSFT62122-PA66HIRHS-BK |
| Package Content | 500pcs. |
| Package Content packed in | pack |
| Product Group | Connector Clips for Oval Holes |
| Short Description | Connector Clip, oval hole 6.2 x 12.2 mm, arrow head, high impact modified, heat stabilised, black - YCCSFT62122 |
| Type | YCCSFT62122 |
| UV-Stabilised | No |
| Weight/Unit | 0.000996kg |
|
|
|
| Country of Origin | FR |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026277202 |
| Packaging 1 - Height (m) | 0.3m |
| Packaging 1 - Length (m) | 0.625m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0825m³ |
| Packaging 1 - Weight (kg) | 0.551478kg |
| Packaging 1 - Width (m) | 0.44m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 15000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 17.36434kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 180000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 229.2kg |
| Packaging 4 - Width (m) | 0.8m |
