Heat shrink marker, thermal transfer print, ladder-style, 11.9mm/4.2mm, W=12.07mm, white, 1000pcs.
Nr. articol 553-50086
| HST12-4WH-4S-PO-X-WH
|
Detalii
- Slide Slit and optional center slits for easy wire insertion.
- Smooth surface for clean and legible printing.
- Supplied on a ladder style carrier so that markers can be kitted after printing.
- A 3:1 shrink ratio means fewer skews as each marker covers a wider range of wire diameters.
Solicitați acum oferta dumneavoastră individuală
Solicitați oferta
Mai multe produse în acest grup de produse:
| Application | Shrinkable markers by thermal transfer. Ideal for applications where dialing cannot take up space or run on the cable. HellermannTyton ShrinkTrak Markers make it easy to identify wires, cables and other components. These markers are made with cuts in the side, which make it easy to apply to the cables. All ShrinkTrak labels are homologated for military use (American Standard). |
| Application Tool | TT431, TT4030 |
| Chem. Material Properties | Resistant to solvents and chemicals when printed with the recommended HellermannTyton ribbon and printing system. |
| Colour | White (WH) |
| Material | Polyolefin, cross-linked (PO-X) |
| Mech. material properties | Flexible, flame retardant heat shrinkable tubing with side slit for easy marker removal. |
| Pack Cont. | 1000pcs. |
| Package Content packed in | box |
| PART DESCRIPTION | HST12-4WH-4S-PO-X-WH |
| Printable | Yes |
| Product Family | ShrinkTrak |
| Product Group | Shrinkable Wire Markers: "Ladder Style", thermal transfer |
| Shrink Ratio | 3:1 |
| Variant | Thin-Wall |
| With inner glue (Yes/No) | No |
|
|
| Flexibility | Flexible |
| For AWG | 2-10 |
| H printable | 19.55mm |
| Height (H) | 19.55mm |
| Outside Ø (OD) | 12.7mm |
| Outside ∅ (OD) | 0.5" |
| Outside ∅ max (OD max.) | 12.7mm |
| Outside ∅ max. | 0.5" |
| Print Method | thermal transfer print |
| Recov. ∅ d max. | 0.166" |
| Recov. ∅ d max. | 4.2mm |
| Supplied ∅ D min. | 11.9mm |
| Supplied ∅ D min. | 0.47" |
| Thickness (T) | .0762mm |
| Wall (WT) | 0.84mm |
| Wall (WT) | 0.033" |
| Weight/Unit | 0.521kg |
| Width (W) | 12.07mm |
| Width of Liner (WL) | 76.2mm |
| Width of LIner (WL) | 3.0" |
| Width printable | 12.07mm |
| Wire Size Range (mm²) | 0.166-0.47mm² |
| ∅ D max. | 0.19" |
| ∅ D max. | 4.83mm |
Descărcare
| Abrasion Resistance | Medium |
| CE Certification | No |
| CSA Certified | No |
| Dielectric Strength | 19.7kV/mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 224 VW-1 |
| Halogen-free | No |
| Hazardous Goods | No |
| Min. Shrink Temperature - °C | +90 °C |
| Operating Temperature | -55 °C to +135 °C |
| Recommended Ribbon Type | TTDTHOUT, TTDTHOUTSM, TT822OUT, TT822OUTSM |
| Reel Variant | ladder-style |
| Solvent Resistance | Good |
| Specifications |
|
| Specifications | SAE - AMS - DTL-23053/5 Class 1 and 3, SAE - AS81531, UL 224 125 °C 600V VW-1 |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| US Gov. Designation | SAE-AMS-DTL-23053/5 Class 1 and 3, MIL-STD-202G Method 215K, SAE-AS81531 |
| UV-Stabilised | No |
| Country of Origin | US |
| Customs Number | 39173200 |
| GTIN-13 / EAN | 4031026264462 |

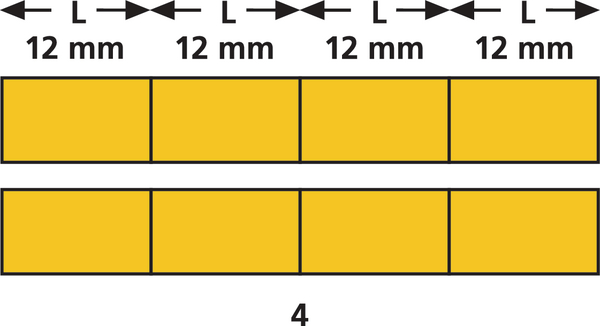

| Labels per Column | 1 |
| Labels per Row | 4 |
| Markers per row | 4 |
| Packaging 1 - Height (m) | 0.18m |
| Packaging 1 - Length (m) | 0.18m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00343m³ |
| Packaging 1 - Weight (kg) | 0.521001kg |
| Packaging 1 - Width (m) | 0.106m |
| Packaging 3 - Height (m) | 0.32m |
| Packaging 3 - Length (m) | 0.39m |
| Packaging 3 - Qty | 12 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0487m³ |
| Packaging 3 - Weight (kg) | 6.752kg |
| Packaging 3 - Width (m) | 0.39m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 192 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Weight (kg) | 129.032kg |
| Packaging 4 - Width (m) | 0.8m |
