Bi-metal cable lug, conductor size 400mm2, M12, AL - CU, 1pc
Art.-No. 924-00872 | BML400-12-CU/AL-BN/ML |

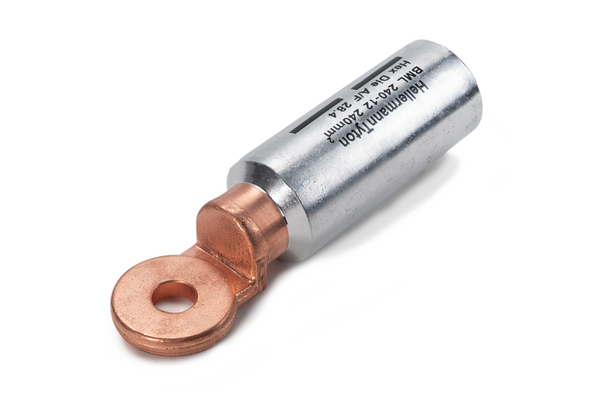

Bi-Metal lug, BML series.

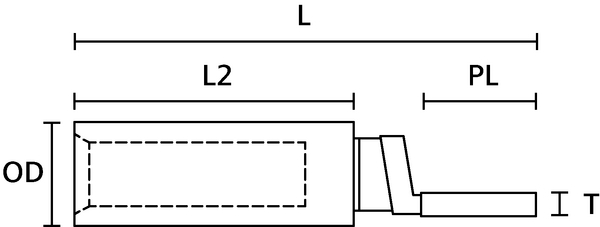

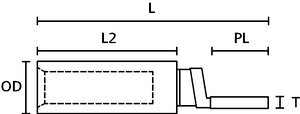

Bi-Metal Lug Series, Side View

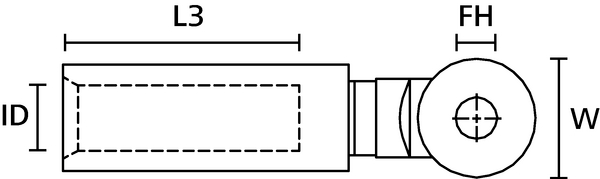

Bi-Metal Lug Series, Top View

Suitable for aluminium conductor and copper terminals or busbar
Crimping compound in barrel and sealed with cap
Funnel entry to suit flexible cable
Chamfering 30 degrees
REACH compliant

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

Bi-Metal Lugs >

Base Data

Application	Bi-metal lugs are used to terminate aluminium conductors to copper busbars, providing a secure, corrosion-resistant and efficient connection between dissimilar metals in electrical systems. Manufactured from the highest quality aluminium and copper and joined using a friction welding process. Designed to withstand high current loads, mechanical stress and harsh environmental conditions, bi-metal lugs are commonly used in utility networks, solar farms, substations and industrial power systems, but are suitable for a wide range of applications and industries. The funnel entry design supports easy insertion of flexible cables. They are a reliable solution for maintaining electrical integrity in mixed-metal installations.
Colour	Aluminium (AL), Light Brown (LTBN)
Description	Bi-Metal Lug 400mm² M12 Stud
Local order number	BML400-12
Material	Copper (CU), Aluminium (AL)
PART DESCRIPTION	BML400-12-CU/AL-BN/ML
Package Content	1pc.
Package Content packed in	pcs.
Product Family	BML-Series, Aluminium to Copper
Product Group	Bi-Metal Lugs
Type	BML400-12

Product Dimensions

A/F Hex (A/F2)	39mm
Conductor Size (mm²)	400
Inside ⌀ (ID)	26.5mm
Length (L)	160mm
Length (L2)	85mm
Length (L3)	70mm
Outside ⌀ (OD)	47mm
Palm Length (PL)	58mm
Stud ⌀	M12
Thickness (T)	10mm
Width (W)	50mm
for Hole ⌀ (FH)	13.0 mm

Downloads

Specifications

Operating Temperature	-40 °C to +100 °C
Specifications

Logistics and Packaging

GTIN-13 / EAN

9349519011697
