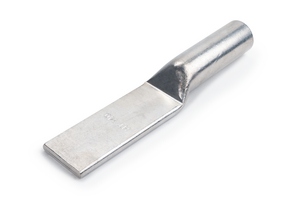

Copper cable lug long barrel-long palm, conductor size 50mm2, blank, 1pc
Art.-No. 924-00717 | CL50LPB-CU-SR

Copied
  • All Long Barrel Long Palm Lugs do not have an inspection hole
  • Solder sealed for outdoor use

Request your individual offer now

Application Long Barrel-Long Palm Copper Cable Lugs are engineered for high-performance terminations in demanding environments where durability and reliability are critical. The extended barrel and palm design provide enhanced mechanical strength and structural integrity, making them ideal for applications subject to vibration, moisture and mechanical stress - such as mining and rail infrastructure. Manufactured from high-conductivity copper and tin-plated for superior corrosion resistance, these lugs ensure long-term electrical performance in both indoor and outdoor installations. Whether deployed in underground mining operations or exposed rail environments, they deliver a secure and dependable connection for heavy-duty electrical systems.
Colour Silver-matt (MTSR)
Description COPPER LUG LONG PALM LONG BARREL 50MM² BLANK
Local order number CL50LPB
Material Copper (CU)
PART DESCRIPTION CL50LPB-CU-SR
Package Content 1pc.
Package Content packed in pcs.
Product Family LPB-Series
Product Group Copper Lug Long Barrel Long Palm Blank
Type CL50LPB
A/F Hex (A/F2) 10.4mm
Cable Size (Strands) 19 x 1.78mm²
Conductor Size (mm²) 50
Inside ⌀ (ID) 9.5mm
Length (L) 130mm
Length (L2) 44mm
Outside ⌀ (OD) 12.9mm
Palm Length (PL) 80mm
Thickness (T) 3.2mm
Width (W) 19mm
Operating Temperature -55 °C to +155 °C
Specifications
GTIN-13 / EAN 9349519006211
