Copper cable lug long barrel-long palm, conductor size 95mm2, blank, 1pc
Art.-No. 924-00719 | CL95LPB-CU-SR |

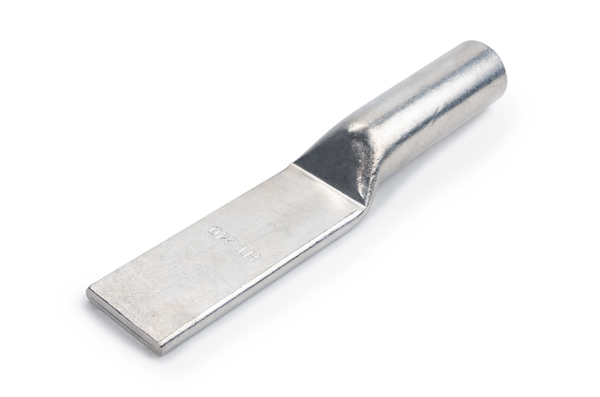

Copper lug long barrel long palm, CL_LPB series.

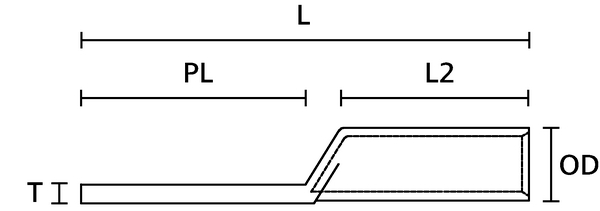

Long Barrel Long Palm Copper Lug Series, Side View

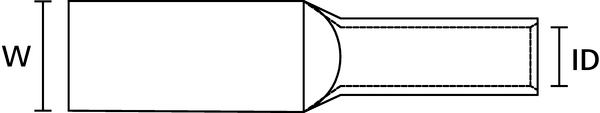

Long Barrel Long Palm Copper Lug Series, Top View

All Long Barrel Long Palm Lugs do not have an inspection hole
Solder sealed for outdoor use

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

Copper Lug Long Barrel Long Palm Blank >

Base Data

Application	Long Barrel-Long Palm Copper Cable Lugs are engineered for high-performance terminations in demanding environments where durability and reliability are critical. The extended barrel and palm design provide enhanced mechanical strength and structural integrity, making them ideal for applications subject to vibration, moisture and mechanical stress - such as mining and rail infrastructure. Manufactured from high-conductivity copper and tin-plated for superior corrosion resistance, these lugs ensure long-term electrical performance in both indoor and outdoor installations. Whether deployed in underground mining operations or exposed rail environments, they deliver a secure and dependable connection for heavy-duty electrical systems.
Colour	Silver-matt (MTSR)
Description	COPPER LUG LONG PALM LONG BARREL 95MM² BLANK
Local order number	CL95LPB
Material	Copper (CU)
PART DESCRIPTION	CL95LPB-CU-SR
Package Content	1pc.
Package Content packed in	pcs.
Product Family	LPB-Series
Product Group	Copper Lug Long Barrel Long Palm Blank
Type	CL95LPB

Product Dimensions

A/F Hex (A/F2)	14.2mm
Cable Size (Strands)	37 x 1.78mm²
Conductor Size (mm²)	95
Inside ⌀ (ID)	13.5mm
Length (L)	161mm
Length (L2)	54mm
Outside ⌀ (OD)	17.6mm
Palm Length (PL)	100mm
Thickness (T)	4mm
Width (W)	25mm

Downloads

Specifications

Operating Temperature	-55 °C to +155 °C
Specifications

Logistics and Packaging

GTIN-13 / EAN

9349519006235
