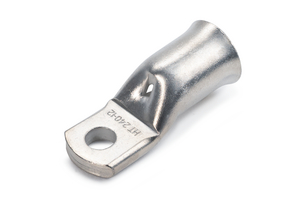

Copper Cable Lug
Art.-No. 924-00681 | CLB35-6-1-CU-SR Details

  • For terminating cables to circuit breakers.
  • Has a narrow palm design for fitting into circuit breaker connection tunnel
  • Suitable for fine strand conductors
  • Bellmouth allows for easy insertion of cable
  • Large range of sizes available
  • Tolerance ± 2%
  • Copper 99.9% pure
  • Oxygen content 30 p.p.m max
  • Ductile rating 40%
  • Final metal state fully annealed
  • Electroplating material tin 99.9% pure
  • Other metals lead + antimony
  • Thickness 5-10 microns
  • Total resistivity: 1.72 micro-ohm cm
  • A heat cycle certification is available on request
Show more

Request your individual offer now

Application Copper cable lugs are used to terminate copper conductors. Our Bellmouth cable lugs are designed to accommodate fine-stranded flexible cables, which can splay out after stripping. The bell mouth funnel facilitates easy conductor insertion. The HellermannTyton range of Copper Lugs and Links complies with the Australian and New Zealand Standard AS/NZS 4325 Part 1:1995 and is manufactured from 99.9%+ pure, high-conductivity annealed copper, ensuring the best electrical properties possible. These lugs are highly conductive and capable of handling very high currents. A crimping tool is recommended for this application.
Colour Silver-matt (MTSR)
Description COPPER LUG CIRCUIT BREAKER 35MM² M6 STUD
Material Copper (CU)
PART DESCRIPTION CLB35-6-1-CU-SR
Pack Content 1pc.
Package Content packed in box
Product Family Bell Mouth Circuit Breaker Lugs Narrow Palm
Product Group Copper Cable Lug
Type CLB35-6-1
A/F Thread (A/F2) 9.2mm
Inside Ø (ID) 8.2mm
Length (L) 41mm
Length (L2) 22.5mm
Main Cabel max 19 x 1.53mm²
Offset Length 15mm
Outside Ø (OD) 10.7mm
Thickness (T) 3mm
Width (W) 11mm
for Hole ∅ (FH) M6
Operating Temperature -55 °C to +155 °C
Specifications
Specifications AS/NZS4325 Part 1
Tensile Strength 205MPa
