Copper circuit breaker cable lug, conductor size 70mm2, M8, 1pc
Art.-No. 924-00685 | CLB70-8-1-CU-SR |

Copper lug circuit breaker narrow palm, CLB series.

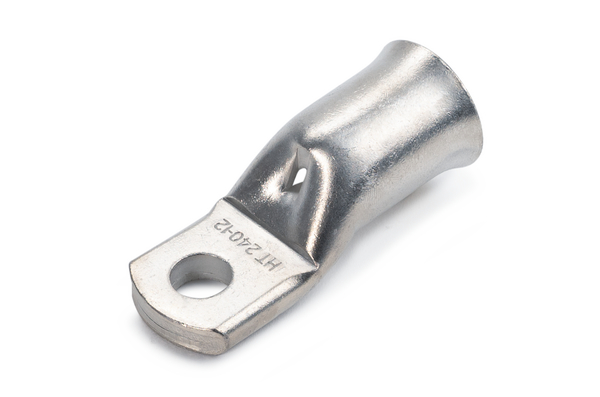

Copper Lug Bell Mouth and Circuit Breaker, Side View

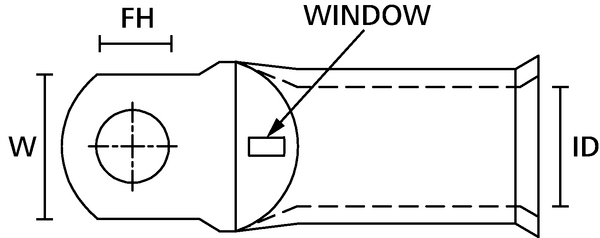

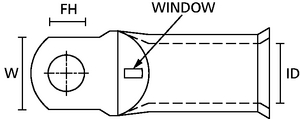

Circuit Breaker Copper Lug, Top View

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

Bell Mouth Circuit Breaker Lugs Narrow Palm >

Base Data

Application	Circuit breaker lugs are specifically engineered for terminating copper conductors in space-constrained environments such as circuit breakers, switchboards, and compact control panels. Their narrow palm profile allows for precise alignment and secure connections in tight installations, reducing the risk of electrical flashover between phases or to ground. Constructed from high-conductivity copper, HellermannTyton lugs are designed to handle high current loads with minimal resistance. The flared barrel supports smooth insertion of flexible or finely stranded cables, preventing strand splaying and ensuring reliable terminations. Tin plating enhances corrosion resistance, supporting long-term performance in both indoor and outdoor settings.
Colour	Silver-matt (MTSR)
Description	COPPER LUG CIRCUIT BREAKER 70MM² M8 STUD
Local order number	CLB70-8-1
Material	Copper (CU)
PART DESCRIPTION	CLB70-8-1-CU-SR
Package Content	1pc.
Package Content packed in	box
Product Family	CLB-Series
Product Group	Bell Mouth Circuit Breaker Lugs Narrow Palm
Type	CLB70-8-1

Product Dimensions

A/F Hex (A/F2)	11.5mm
Cable Size (Strands)	19 x 2.14mm²
Conductor Size (mm²)	70
Inside ⌀ (ID)	11.2mm
Length (L)	45mm
Length (L2)	24mm
Outside ⌀ (OD)	14.6mm
Palm Length (PL)	15mm
Stud ⌀	M8
Thickness (T)	3.5mm
Width (W)	17mm
for Hole ⌀ (FH)	8.4 mm

Downloads

Specifications

Operating Temperature	-55 °C to +155 °C
Specifications

Logistics and Packaging

GTIN-13 / EAN

9349519003258
