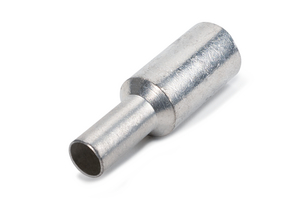

Copper reducing link, conductor size 240 - 95mm2, 1pc
Art.-No. 924-00798 | CRL240-95-CU-SR

Copied
  • Designed for linking different-sized copper conductors
  • A heat cycle certification is available on request

Request your individual offer now

Application Copper Reducing Links are designed to join two copper conductors of different sizes in-line, providing a clean and reliable transition between varying cable diameters. Manufactured from 99.9% pure copper and fully annealed, they offer excellent conductivity and ensure low resistance and consistent current flow across the joint. These links are multipurpose and suitable for a wide range of applications and industries, including switchboards, power distribution systems and industrial installations, where varying wire sizes are common. The stepped barrel design allows for precise cable fit and supports full compression when used with a HellermannTyton crimping tool, providing a vibration-resistant connection.
Colour Silver-matt (MTSR)
Description COPPER REDUCING LINK 240MM²-95MM²
Local order number CRL240-95
Material Copper (CU)
PART DESCRIPTION CRL240-95-CU-SR
Package Content 1pc.
Package Content packed in pcs.
Product Family CRL-Series
Product Group Reducing Copper Links
Type CRL240-95
A/F Hex (A/F2) 23.1mm
Conductor Size (mm²) 240, 95
Diameter (D) 13.4mm
Inside ⌀ (ID) 21.2mm
Length (L) 85mm
Length (L2) 38mm
Length (L3) 27mm
Outside ⌀ (OD) 17.4mm
Outside ⌀ (OD2) 28.5mm
Operating Temperature -55 °C to +155 °C
Specifications
GTIN-13 / EAN 9349519009496
