Un-insulated bootlace terminal, conductor size 16mm2, 50pcs, Copper
Art.-No. 924-00508 | BLU16-CU-SR |

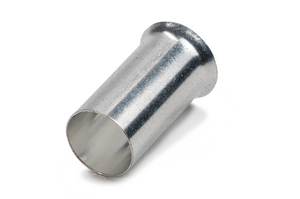

Uninsulated bootlace ferrules, BLU series.

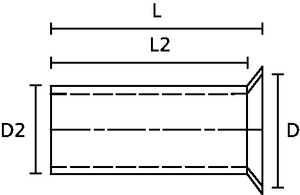

Un-Insulated Bootlace Ferrule Series, Side View

Colour coded for easier identification
Reduces the possibility of short circuiting
Packaged in resealable bags
REACH compliant

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

Un-Insulated Bootlace Ferrules >

Base Data

Application	Uninsulated bootlace terminals provide a compact and reliable termination for finely stranded cables, improving contact quality in terminal blocks and screw connectors. Manufactured without a nylon sleeve, they support a wider operating temperature range from -55 °C to +155 °C, making them ideal for space-constrained or harsh environments. These ferrules prevent wire strand splaying, reduce connection failures, and ensure consistent electrical performance. Suitable for control panels, switchboards and industrial equipment where a neat and professional finish is required.
Colour	Silver-matt (MTSR)
Description	Un-insulated Bootlace Ferrule
Local order number	BLU16
Material	Copper (CU)
Max Voltage	600V
PART DESCRIPTION	BLU16-CU-SR
Package Content	50pcs.
Package Content packed in	bag
Product Family	Bootlace Terminals
Product Group	Un-Insulated Bootlace Ferrules
Type	BLU16

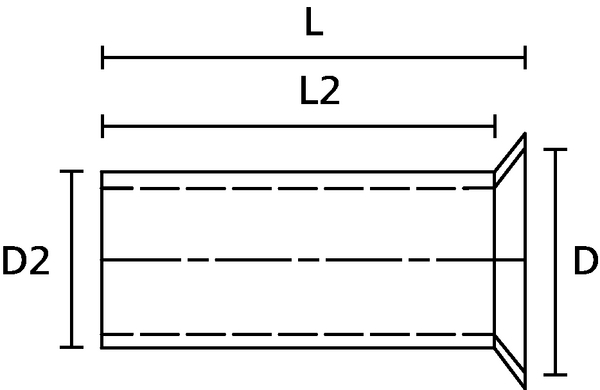

Product Dimensions

⌀ (D2)	5.8mm
Conductor Size (mm²)	16.0
Diameter (D)	7.5mm
Length (L)	15mm
Length (L2)	13.5mm

Downloads

Specifications

Operating Temperature	-55 °C to +155 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

GTIN-13 / EAN

9349519001315

More Information

Accessories

HYAC6 924-00318
Bootlace Ferrule Crimp Tools
On my watchlist Add to watchlist

To use the watchlist, please login or register:
Login / Register
HYAC10 924-00319
Bootlace Ferrule Crimp Tools
On my watchlist Add to watchlist

To use the watchlist, please login or register:
Login / Register

Similar products

CE1-AL/PA66-CL 924-00499

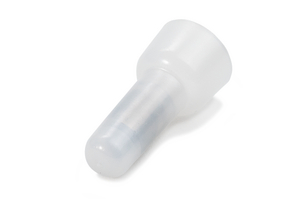

Closed end connector terminal, conductor sizes 0.5 - 1.5mm2, 50pcs, transparent
