Heat shirnk crimp link terminal double grip, conductor sizes 4 - 6mm2, 50pcs, yellow
Art.-No. 924-00456 | BSW5-CU/PVC-YE |

Copied

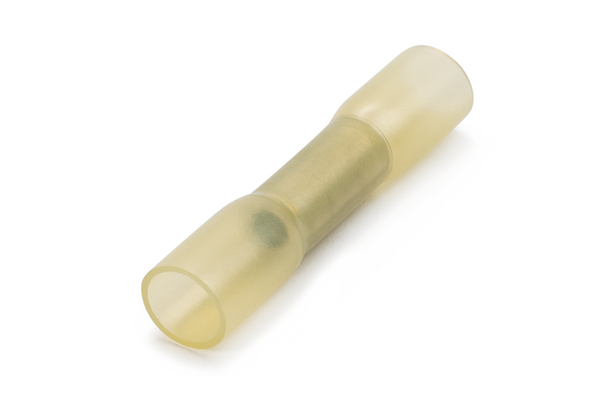

Heatshrink crimp link terminal, BSW5.
Heatshrink Crimp Link, Side View

    • Three conductor sizes for versatile wiring needs
    • Colour-coded for easier identification
    • Suitable for indoor and outdoor applications
    • Widely used in control panels, power distribution, automotive and heavy machinery
    • Heat shrink provides additional protection against moisture, dust, and other contaminants
    • Packaged in a resealable bag
    • REACH compliant
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat shrink crimp links are used to join two wires together, providing a durable and reliable electrical connection. The single grip design ensures optimal wire retention during crimping, while the heat shrink tubing offers an additional environmental seal against moisture, dust and other contaminants. These terminals are suitable for both indoor and outdoor applications, offering excellent insulation and mechanical protection in harsh environments. Once heated, the tubing shrinks to form a tight seal around the wire, preventing exposure and reducing the risk of corrosion or electrical failure. Crimp with the HYYT1 prior to heat application to ensure a secure mechanical bond.
    Colour Yellow (YE)
    Description Waterproof crimp link single grip, conductor size 4 - 6mm², yellow
    Local order number BSW5
    Material Copper (CU), Polyvinylchloride (PVC)
    Max Current 48A
    Max Voltage 600V
    PART DESCRIPTION BSW5-CU/PVC-YE
    Package Content 50pcs.
    Package Content packed in bag
    Product Family Single Grip Pre-Insulated Terminals
    Product Group Heat Shrink Crimp Link (Waterproof Connectors)
    Type BSW5
    ⌀ (D2) 4.05mm
    Conductor Size Range mm² 4.0-6.0mm²
    Diameter (D) 7.4mm
    Length (L) 40.5mm
    Length (L2) 15mm
    Halogen-free Yes
    Operating Temperature +75 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 9349519000400
