Quick connect/disconnect piggy back terminal, conductor sizes 4 - 6mm2, 25pcs, yellow
Art.-No. 924-00423 | QDF5-6P-BS/PVC-YE |

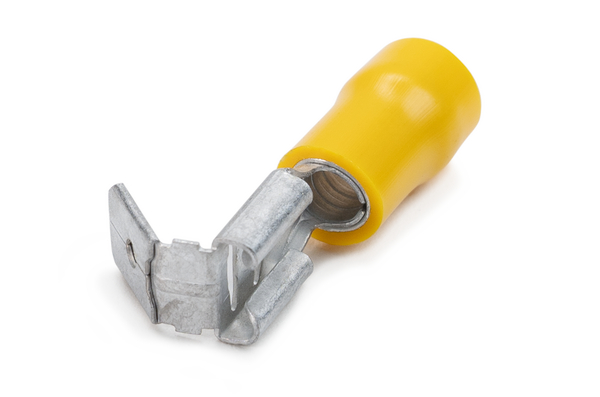

Quick connect/disconnect piggy back terminal, QDF5-6P.

Quick Connect/Disconnect Piggy Back, Front View

Quick Connect/Disconnect Piggy Back, Side View

Finish

Double grip for high vibration industrial applications
Reinforcement Sleeve: D Type
Maximum Electrical Rating: 105°C 600V
Colour coded for easier identitfication
Enhanced Pull-Out Force which provides a stronger, more secure hold
Additional copper sleeve for premium vibration
Copper terminal body with PVC insulation for enhanced wire insulation
Packaged in resealable bags
REACH compliant

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

Quick Connect/Disconnect Piggy Back Female/Male Funnel Entry >

Base Data

Application	The Double Grip Quick Connect/Disconnect Piggy Back Terminals are recommended for connecting electrical conductors in challenging industrial applications. Manufactured with an additional copper sleeve and PVC insulation, for maximum vibration resistance and premium wire insulation. Quick connect/Quick disconnect terminals allow for fast and dependable connection and disconnection of two wires. A terminal application tool is recommended.
Colour	Yellow (YE)
Description	QC PIGGY BACK FUNNEL YELLOW D/GRIP 6.4MM X 0.8MM
Local order number	QDF5-6P
Material	Brass (BS), Polyvinylchloride (PVC)
Max Current	24A
Max Voltage	300V
PART DESCRIPTION	QDF5-6P-BS/PVC-YE
Package Content	25pcs.
Package Content packed in	bag
Product Family	Double Grip Pre-Insulated Terminals
Product Group	Quick Connect/Disconnect Piggy Back Female/Male Funnel Entry
Type	QDF5-6P

Product Dimensions

Conductor Size Range mm²	4.0-6.0mm²
Diameter (D)	7mm
Length (L)	26mm
Length (L2)	14mm
Length (L3)	12mm
Width (W)	6.7mm
Width (W2)	6.2mm

Downloads

Specifications

Halogen-free	No
Operating Temperature	+75 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

GTIN-13 / EAN

9349519000776

More Information

Accessories

HYYT7 924-00316
Terminal Crimp Tools
