Quick disconnect male funnel entry terminal, conductor sizes 1.5 - 2.5mm2, 100pcs, blue
Art.-No. 924-00419 | QDM2-6-BS/PVC-BU |

Quick disconnect male terminal, QDM2-6.

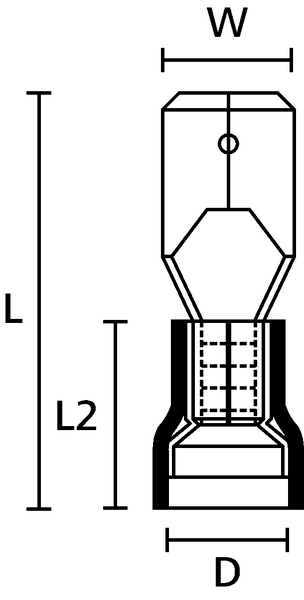

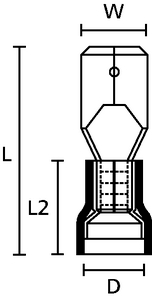

Quick Disconnect Male Funnel Entry, Front View

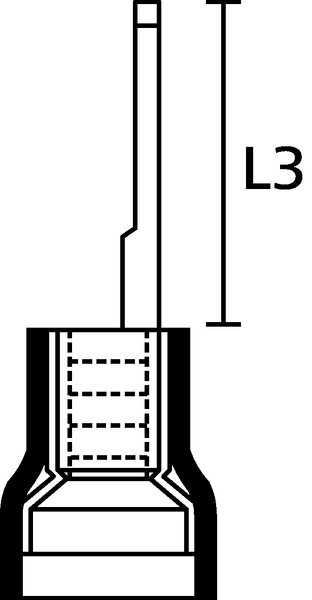

Quick Disconnect Male Funnel Entry, Side View

Double grip for high vibration industrial applications
Colour coded for easier identitfication
Enhanced Pull-Out Force which provides a stronger, more secure hold
Additional copper sleeve for premium vibration
Copper terminal body with PVC insulation for enhanced wire insulation
Packaged in resealable bags
REACH compliant

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

Quick Disconnect Male Funnel Entry >

Base Data

Application	Our Male Funnel Entries are recommended for connecting electrical conductors in challenging industrial applications. Manufactured with an additional copper sleeve and PVC insulation, for maximum vibration resistance and premium wire insulation. The Quick connect/Quick disconnect terminals allow for fast and dependable connection and disconnection of two wires. A terminal crimping tool is recommended for the application.
Colour	Blue (BU)
Description	QC DISCONNECTS MALE FUNNEL BLUE D/GRIP 6.4 X 0.8MM
Local order number	QDM2-6
Material	Brass (BS), Polyvinylchloride (PVC)
Max Current	15A
Max Voltage	300V
PART DESCRIPTION	QDM2-6-BS/PVC-BU
Package Content	100pcs.
Package Content packed in	bag
Product Family	Double Grip Pre-Insulated Terminals
Product Group	Quick Disconnect Male Funnel Entry
Type	QDM2-6

Product Dimensions

Conductor Size Range mm²	1.5-2.5mm²
Diameter (D)	4.9mm
Length (L)	22.5mm
Length (L2)	11mm
Length (L3)	11.5mm
Width (W)	6.3mm

Downloads

Specifications

Operating Temperature	+75 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

GTIN-13 / EAN

9349519000547

More Information

Accessories

HYYT7 924-00316
Terminal Crimp Tools
