Flat Blade Terminals
Art.-No. 924-00407 | FBD2M-CU/PVC-BU |

Copied

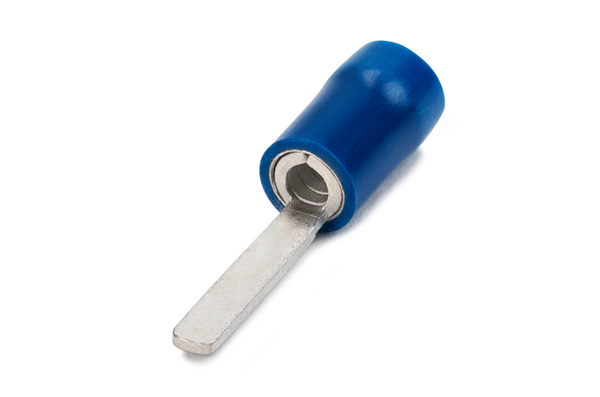

Flat blade terminal, FBD2 series.

    • Double grip for high vibration industrial applications
    • Reinforcement Sleeve: C Type
    • Colour coded for easier identitfication
    • Enhanced Pull-Out Force which provides a stronger, more secure hold
    • Additional copper sleeve for premium vibration
    • Copper terminal body with PVC insulation for enhanced wire insulation
    • Packaged in resealable bags
    • REACH compliant
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The Double Grip Flate Blade Terminals are recommended for connecting electrical conductors in challenging industrial applications. Manufactured with an additional copper sleeve and PVC insulation, for maximum vibration resistance and premium wire insulation. The Flat Blade Terminal is suitable for connecting electrical conductors. They are recommended for use in terminal bars, contactors and as termination of flexible cables. The HYYT7 terminal crimping tool is recommended for the application.
    Bestell Typ FBD2M
    Bezeichnung FLAT BLADE BLUE DOUBLE GRIP MEDIUM 13MM PIN
    Farbe Blue (BU)
    Inhalt 100ST
    Inhalt per bag
    Material Copper (CU), Polyvinylchloride (PVC)
    Produktbezeichnung FBD2M-CU/PVC-BU
    Produktfamilie Double Grip Pre-Insulated
    Produktgruppe Flat Blade Terminals
    Typ FBD2M
    ⌀ D 5mm
    Breite (W) 2.4mm
    Leiterquerschnitt (mm²) von bis 1.5-2.5mm²
    Länge (L) 23mm
    Länge (L2) 10mm
    Länge (L3) 13mm
    Nennspannung 600V
    Nennstrom 27A
    Betriebstemperatur +75 °C
    ROHS konform Yes
    Zulassungen/Normen
    EAN / GTIN 9349519010140
    Ursprungsland TW
    Zollwarentarif Nr. 85369010
