Pin Connectors
Art.-No. 924-00401 | PD2-CU/PVC-BU |

Copied

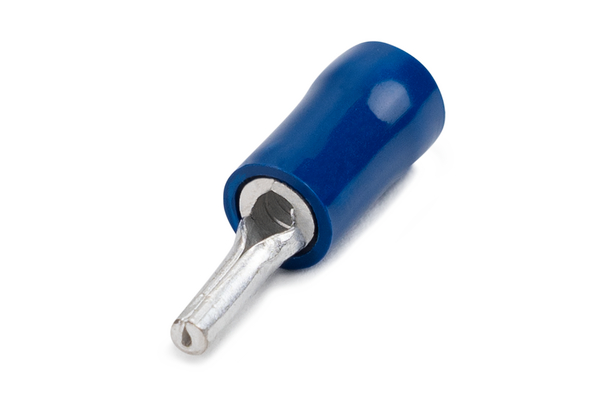

Pin connector terminal, PD2.

    • Double grip for high vibration industrial applications
    • Colour coded for easier identitfication
    • Enhanced Pull-Out Force which provides a stronger, more secure hold
    • Additional copper sleeve for premium vibration
    • Copper terminal body with PVC insulation for enhanced wire insulation
    • Packaged in resealable bags
    • REACH compliant
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The Double Grip Pin Connector Terminals are recommended for connecting electrical conductors in challenging industrial applications. Manufactured with an additional copper sleeve and PVC insulation, for maximum vibration resistance and premium wire insulation. Suitable for connecting electrical conductors. They are recommended for use in terminal bars, contactors and as termination of flexible cables. The HYYT7 terminal crimping tool is recommended for the application.
    Bestell Typ PD2
    Bezeichnung PIN CONNECTOR BLUE D/GRIP 9.3MM PIN 1.5MM²-2.5MM²
    Farbe Blue (BU)
    Inhalt 100ST
    Inhalt per bag
    Material Copper (CU), Polyvinylchloride (PVC)
    Produktbezeichnung PD2-CU/PVC-BU
    Produktfamilie Double Grip Pre-Insulated
    Produktgruppe Pin Connectors
    Typ PD2
    ⌀ D 5.3mm
    ⌀ D2 2.00mm
    Leiterquerschnitt (mm²) von bis 1.5-2.5mm²
    Länge (L) 20.7mm
    Länge (L2) 10.7mm
    Länge (L3) 10mm
    Nennspannung 600V
    Nennstrom 27A
    Betriebstemperatur +75 °C
    ROHS konform Yes
    Zulassungen/Normen
    EAN / GTIN 9349519000332
    Ursprungsland CN
    Zollwarentarif Nr. 85369010
