WSR-PA66HIRHSUV-BK : WSR

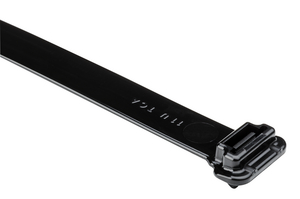

Cable Tie 380x12.7 blackNumăr articol: 111-12302

Caracteristici

  • Wide strap is designed to minimize pinching of soft hoses and convoluted tubing
  • Low profile head
  • Clamping rails on the bottom of head to increase grip on round bundles
  • Accommodates a large range of bundle diameters: 9.5mm - 104.7mm
  • Flexible strap
  • Bent tip for quick insertion into mounts

Certificări & aprobări

Aplicație

The very flexible wide-strap cable tie is used in heavy-duty applications where limited room is offered for the application. It is therefore a valued product in all areas of mass transit, as well as the construction and automotive industries.

Application Tool MK9P, EVO9, EVO9HT, MK9SST
Colour Black (BK)
Identification Plate Position none
Pack Cont. 300pcs.
Package Quantity per bag
PART DESCRIPTION WSR-PA66HIRHSUV-BK
Releasable Closure (Yes/No) No
Short Description Cable Tie 380x12.7 black
Tie Closure plastic pawl
Variant Inside Serrated
Bundle ∅ max. 105.0mm
Bundle ∅ min. 9.5mm
Cable Tie Head Height (metric) 5.6mm
Cable Tie Head Length (metric) 10.2mm
Cable Tie Head Width (metric) 19.8mm
Length (L) 383.5mm
Min.Tensile Strength 535.0N
Strap Width max. (G) 0.78"
Thickness (T) 1.4mm
Width (W) 12.7mm
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous good No
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Nato number 5975-12-394-6945
Operating Temperature - °C -40 °C to +105 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
GTIN-13 / EAN 4031026311661
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.5m
Packaging 1 - Qty 300
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.0018
Packaging 1 - Weight (kg) 0.660001kg
Packaging 1 - Width (m) 0.12m
Packaging 3 - Height (m) 0.213m
Packaging 3 - Length (m) 0.514m
Packaging 3 - Qty 1200
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0348
Packaging 3 - Weight (kg) 3.260004kg
Packaging 3 - Width (m) 0.318m
Packaging 4 - Height (m) 1.22m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 24000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.171
Packaging 4 - Weight (kg) 86.2kg
Packaging 4 - Width (m) 0.8m
ETIM 6.0 EC000046
ETIM 7.0 Key EC000046
UNSPSC Key 39121703
