26/04/2024

Fixing tie for hole (round), outside serrated, Ø1.0-25.0mm, black, 500pcs.
Nr. articol 126-00341 | T30SOSASSFT6.5x4.0E-PA66HS-BK |  Detalii

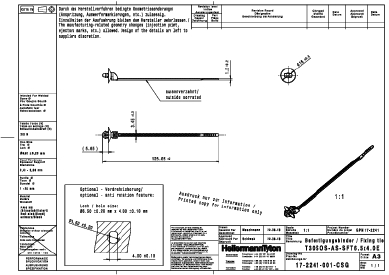

T30SOS-AS-SFT6.5x4E, 1 piece fixing tie with AntiSlip engraving for a round hole 6.5 mm or a square hole 6.5x4 mm.

    • Easy to install without the need for a tool
    • Arrowhead simply locks into place
    • Disc adjusts tie for pressures from various directions and minimises ingress of dust and dirt
    • Cable tie head always situated in a defined position
    Adăugați la lista de urmărire

    Solicitați acum oferta dumneavoastră individuală

     Solicitați oferta
    Downloads
    Application With a diverse range of fixing possibilities these ties are ideal for use in many different industries, including automotive, aerospace, white goods manufacture and panel building. This fastening solution is used to secure cable harnesses. We offer a variety of panel thicknesses and hole sizes to suit all kinds of application.
    Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP
    Colour Black (BK)
    Fixation Method arrowhead
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    Pack Cont. 500pcs.
    Package Content packed in bag
    PART DESCRIPTION T30SOSASSFT6.5x4.0E-PA66HS-BK
    Product Family for round holes
    Product Group 1-piece fixing ties with arrowhead, with disc
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Variant Outside Serrated with AntiSlip Engraving
    Bundle Diameter max (metric) 25.0mm
    Bundle ∅ 1.0-25.0mm
    Bundle ∅ min. 1.0mm
    Disc ∅ 16.0mm
    for Hole ∅ (FH) 6.5 mm, 6.5 x 4.0 mm
    for Panel Thickness min - max 2.4 - 3 mm
    Length (L) 126.65mm
    Min.Tensile Strength 200N
    Weight/Unit 0.000877kg
    Width (W) 3.45mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026607962
    Packaging 1 - Height (m) 0.1m
    Packaging 1 - Length (m) 0.41m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01558m³
    Packaging 1 - Weight (kg) 0.4675kg
    Packaging 1 - Width (m) 0.38m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 6000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 6.28762kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 72000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 96.432kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
