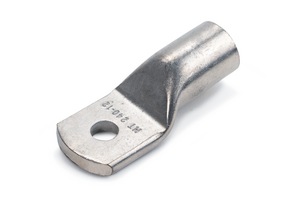

Copper cable lug, conductor size 95mm2, M8, 25pcs
Art.-No. 924-00604
| CL95-8-CU-SR
|
Copied
- Wide range of sizes that supports conductor sizes from 1.5 mm² to 630 mm²
- Inspection window included up to 240 mm² for visual confirmation of cable placement
- Total conductivity: 99.9% IACS
- Low oxygen content (30 ppm max)
- Tin electroplating (5–10 microns)
- Total resistivity: 1.72 micro-ohm cm
- Ductile rating: 40%
- REACH compliant
Stock item
Request your individual offer now
Request quote
More products in this product group:
| Application | Copper cable lugs provide a reliable solution for terminating copper conductors in a wide range of electrical installations. Designed for general-purpose use, they accommodate various conductor sizes and are suitable for both high-performance systems and routine electrical work. Manufactured from 99.9% pure, high-conductivity copper and fully annealed, HellermannTyton lugs offer excellent ductility and mechanical strength, ensuring secure crimping without cracking under compression. The straight barrel design allows for easy conductor insertion and is compatible with both indent and hexagonal crimping tools. A tin-plated finish (5–10 microns) enhances corrosion resistance and electrical performance, supporting long-term reliability in harsh environments. |
| Colour | Silver-matt (MTSR) |
| Description | Copper lug, conductor size 95mm² M8 |
| Local order number | CL95-8 |
| Material | Copper (CU) |
| PART DESCRIPTION | CL95-8-CU-SR |
| Package Content | 25pcs. |
| Package Content packed in | box |
| Product Family | CL-Series |
| Product Group | Copper Cable Lug |
| Type | CL95-8 |
