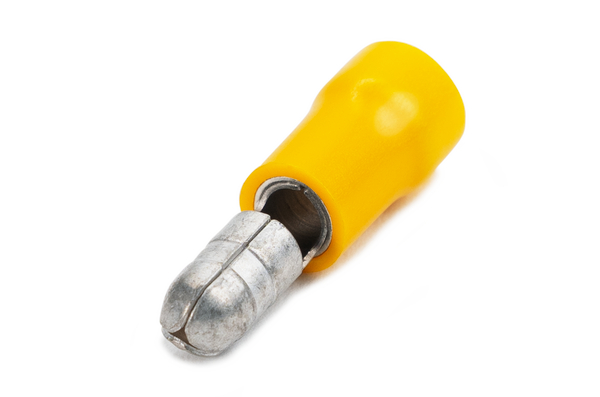

Male bullet terminal double grip, conductor sizes 4 - 6mm2, 50pcs, yellow
Art.-No. 924-00447
| BDM5-5-BS/PVC/CU-YE
|
Copied
- Three conductor sizes for versatile wiring needs
- Colour-coded for easier identification
- Enhanced pull-out force provides a stronger, more secure hold
- Widely used in control panels, power distribution, automotive and heavy machinery
- Manufactured with an additional copper sleeve to allow for premium vibration resistance
- Packaged in a resealable bag
- REACH compliant
Show more
Show less
Request quote
More products in this product group:
| Application | Male bullet connectors offer quick and secure plug-in solutions for wiring setups where space is limited and a neat, space-saving connection is needed. Their rounded profile allows for smooth mating with female bullet terminals (FDF Series), making them ideal for blind or hard-to-reach installations. The funnel entry guides the wire smoothly into position, helping installers work quickly and accurately, while the double grip crimp provides a strong, vibration-resistant hold. Their firmer fit makes them a reliable choice for automotive, marine and agricultural applications. For best results, crimp using the HYYT7 tool to ensure consistent and secure connections. |
| Colour | Yellow (YE) |

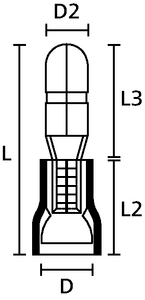

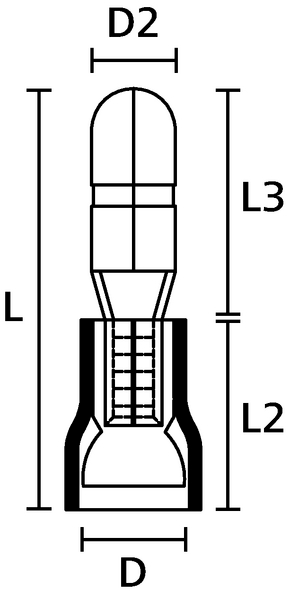

| Description | Male bullet terminal double grip, conductor size 4 - 6mm², yellow |
| Local order number | BDM5-5 |
| Material | Brass (BS), Polyvinylchloride (PVC), Copper (CU) |
| Max Current | 24A |
| Max Voltage | 300V |
| PART DESCRIPTION | BDM5-5-BS/PVC/CU-YE |
| Package Content | 50pcs. |
| Package Content packed in | bag |
| Product Family | Double Grip Pre-Insulated Terminals |
| Product Group | Male Bullet Funnel Entry |
| Type | BDM5-5 |
| GTIN-13 / EAN | 9349519000851 |
| Packaging 1 - Height (m) | 0.163m |
| Packaging 1 - Qty | 50 |
| Packaging 1 - Type | pack |
| Packaging 1 - Weight (kg) | 0.09kg |
| Packaging 1 - Width (m) | 0.104m |
| Packaging 2 - Height (m) | 0.11m |
| Packaging 2 - Length (m) | 0.21m |
| Packaging 2 - Qty | 750 |
| Packaging 2 - Type | carton |
| Packaging 2 - Volume (m³) | 0.0032m³ |
| Packaging 2 - Weight (kg) | 1.478kg |
| Packaging 2 - Width (m) | 0.14m |
| Packaging 3 - Height (m) | 0.26m |
| Packaging 3 - Length (m) | 0.36m |
| Packaging 3 - Qty | 4500 |
| Packaging 3 - Type | pallet |
| Packaging 3 - Volume (m³) | 0.0281m³ |
| Packaging 3 - Weight (kg) | 9.386kg |
| Packaging 3 - Width (m) | 0.30m |
