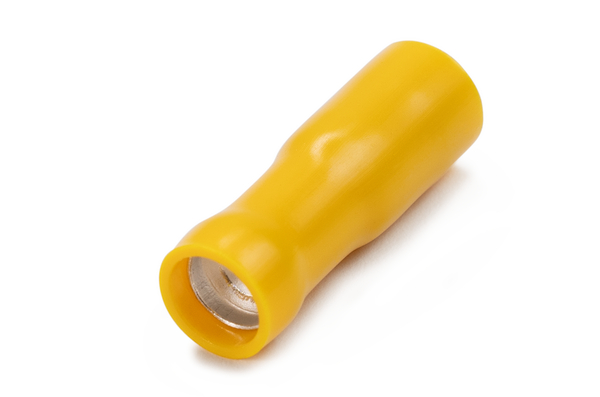

Female bullet terminal double grip, conductor sizes 4 - 6mm2, 50pcs, yellow
Art.-No. 924-00450
| FDF5-5-BS/PVC-YE
|
Copied
- Double grip for high vibration industrial applications
- Colour coded for easier identitfication
- Enhanced Pull-Out Force which provides a stronger, more secure hold
- Additional copper sleeve for premium vibration
- Copper terminal body with PVC insulation for enhanced wire insulation
- Packaged in resealable bags
- REACH compliant
Request your individual offer now
Request quote
More products in this product group:
| Application | Female bullet connectors are designed to pair seamlessly with male bullet terminals (BDM Series), forming a secure, disconnectable connection ideal for systems that require regular servicing or reconfiguration. Their rounded internal profile ensures smooth mating with the male bullet, making them especially useful in tight or blind installation spaces. The funnel entry simplifies wire placement, helping installers work quickly and accurately, while the double grip crimp provides a strong, vibration-resistant hold that maintains electrical integrity over time. Commonly used in automotive, marine and agricultural applications. For best results, crimp using the HYYT7 tool to ensure consistent and secure connections. |
| Colour | Yellow (YE) |
| Description | FEMALE BULLETT YELLOW DOUBLE GRIP 4MM²-6MM² |
| Local order number | FDF5-5 |
| Material | Brass (BS), Polyvinylchloride (PVC) |
| Max Current | 24A |
| Max Voltage | 300V |
| PART DESCRIPTION | FDF5-5-BS/PVC-YE |
| Package Content | 50pcs. |
| Package Content packed in | bag |
| Product Family | Double Grip Pre-Insulated Terminals |
| Product Group | Female Bullet Funnel Entry |
| Type | FDF5-5 |
