Quick connect fully insulated female funnel entry terminal 105°c, conductor sizes 0.5 - 1.5mm2, 6.4 x 0.8mm, 100pcs, red
Art.-No. 924-00440
| QDF1-6F-BS/PA66/CU-RD
|
Copied
- Available in a range of tab sizes and three conductor sizes for versatile wiring needs
- Fully insulated, transparent in colour
- Colour-coded for easier identification
- Enhanced pull-out force provides a stronger, more secure hold
- Manufactured with an additional copper sleeve to allow for premium vibration resistance
- Packaged in a resealable bag
- REACH compliant
Show more
Show less
Request quote
More products in this product group:
| Application | The QDF-6F Series uses tough, transparent nylon (PA66) insulation, rated to 105°C, making it perfect for areas near motors, transformers, or other heat-generating components where standard terminals might fail over time. The funnel entry helps guide the wire into place quickly and cleanly, reducing the chance of strand damage and speeding up installation. The double grip crimp keeps the connection secure, even in areas exposed to vibration or movement. Crimp using the HYYT7 tool for consistent, safe, and long-lasting connections. |
| Colour | Red (RD) |

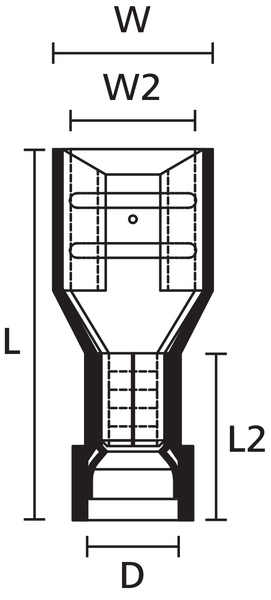

| Description | Quick connect - fully insulated female funnel double grip, conductor size 0.5 - 1.5mm² - TAB 6.4 x 0.8mm, red |
| Local order number | QDF1-6F |
| Material | Brass (BS), Polyamide 6.6 (PA66), Copper (CU) |
| Max Current | 10A |
| Max Voltage | 300V |
| PART DESCRIPTION | QDF1-6F-BS/PA66/CU-RD |
| Package Content | 100pcs. |
| Package Content packed in | bag |
| Product Family | Double Grip Pre-Insulated Terminals |
| Product Group | Quick Connect Fully Insulated Female Funnel Entry 105 °C |
| Type | QDF1-6F |
