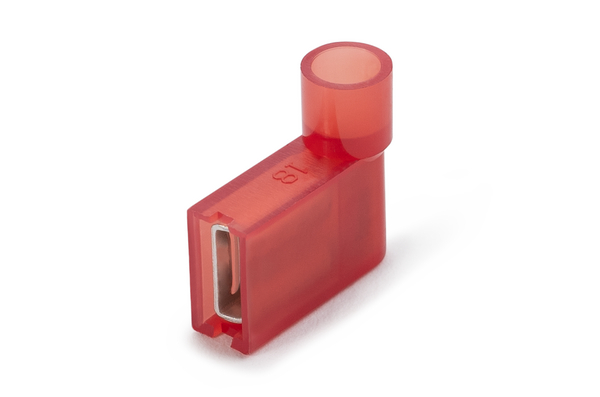

90° Nylon Flag Quick Connect Fully Insulated Female Funnel Entry 105 °C
Art.-No. 924-00443 | QDF1-6F90-BS/PA6-RD |

Copied
Quick connect 90° fully insulated 105°C terminal, QDF1-6F90.

    • Fully insulated
    • Double grip for high vibration industrial applications
    • Colour coded for easier identitfication
    • Additional copper sleeve for premium vibration
    • Copper terminal body with PVC insulation for enhanced wire insulation
    • Packaged in resealable bags
    • REACH compliant
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The Double Grip Nylon Flag 90° Fully Insulated Terminals are recommended for connecting electrical conductors in challenging industrial applications. Manufactured with an additional copper sleeve and PVC insulation, for maximum vibration resistance and premium wire insulation. The Quick connect/Quick disconnect terminals allow for fast and dependable connection and disconnection of two wires. A terminal application tool is recommended
    Bestell Typ QDF1-6F90
    Bezeichnung FLAG QC DISCONNECT FEMALE FUNNEL RED 90 DEG F/INS
    Farbe Red (RD)
    Inhalt 50ST
    Inhalt per bag
    Material Brass (BS), Polyamide 6 (PA6)
    Produktbezeichnung QDF1-6F90-BS/PA6-RD
    Produktfamilie Double Grip Pre-Insulated Terminals
    Produktgruppe 90° Nylon Flag Quick Connect Fully Insulated Female Funnel Entry 105 °C
    Typ QDF1-6F90
    ⌀ D 1.7mm
    Breite (W) 6.6mm
    Leiterquerschnitt (mm²) von bis 0.5-1.5mm²
    Länge (L) 16.1mm
    Länge (L3) 7.9mm
    Nennspannung 600V
    Nennstrom 19A
    Betriebstemperatur +105 °C
    Halogenfrei Yes
    ROHS konform Yes
    Zulassungen/Normen
    EAN / GTIN 9349519000783
    Ursprungsland CN
    Zollwarentarif Nr. 85369010
