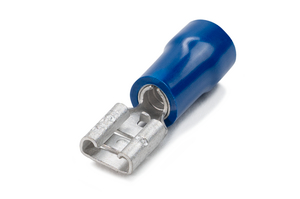

Quick connect fully insulated female funnel entry terminal 105°c, conductor sizes 1.5 - 2.5mm2, 6.4 x 0.8mm, 100pcs, blue
Art.-No. 924-00441 | QDF2-6F-BS/PA66/CU-BU

Copied
  • Fully insulated
  • Double grip for high vibration industrial applications
  • Colour coded for easier identitfication
  • Enhanced Pull-Out Force which provides a stronger, more secure hold
  • Additional copper sleeve for premium vibration
  • Packaged in a resealable bag
  • REACH compliant

Request your individual offer now

Application The QDF-6F Series uses tough, transparent nylon (PA66) insulation, rated to 105°C, making it perfect for areas near motors, transformers, or other heat-generating components where standard terminals might fail over time. The funnel entry helps guide the wire into place quickly and cleanly, reducing the chance of strand damage and speeding up installation. The double grip crimp keeps the connection secure, even in areas exposed to vibration or movement. Crimp using the HYYT7 tool for consistent, safe, and long-lasting connections.
Colour Blue (BU)
Description QC FEMALE FUNNEL BLUE D/GRIP 105° F/INS 6.4X0.8MM
Local order number QDF2-6F
Material Brass (BS), Polyamide 6.6 (PA66), Copper (CU)
Max Current 15A
Max Voltage 300V
PART DESCRIPTION QDF2-6F-BS/PA66/CU-BU
Package Content 100pcs.
Package Content packed in bag
Product Family Double Grip Pre-Insulated Terminals
Product Group Quick Connect Fully Insulated Female Funnel Entry 105 °C
Type QDF2-6F
Conductor Size Range mm² 1.5-2.5mm²
Diameter (D) 5mm
Length (L) 22mm
Length (L2) 11mm
Width (W) 9mm
Width (W2) 6.7mm
Halogen-free Yes
Operating Temperature +105 °C
ROHS compliant Yes
Specifications
GTIN-13 / EAN 9349519000615
