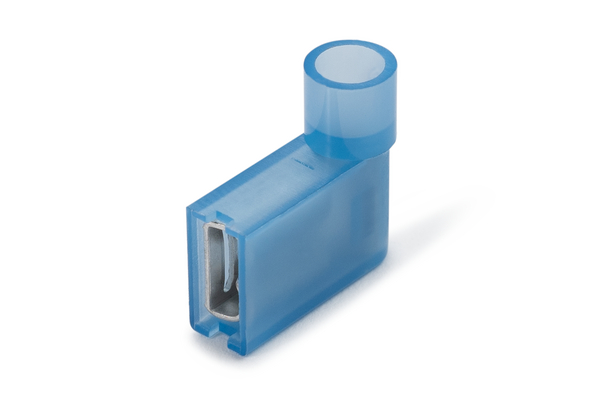

Quick connect fully insulated 90° flag female funnel entry terminal, conductor sizes 1.5 - 2.5mm², 50pcs, blue
Art.-No. 924-00444
| QDF2-6F90-BS/PA66-BU
|
Copied
- Available in a range of tab sizes and two conductor sizes for versatile wiring needs
- Fully insulated, transparent in colour
- Colour-coded for easier identification
- Enhanced pull-out force provides a stronger, more secure hold
- Manufactured with an additional copper sleeve to allow for premium vibration resistance
- Packaged in a resealable bag
- REACH compliant
Request your individual offer now
Request quote
More products in this product group:
| Application | 90-degree flag terminals are designed for installations where space is limited or wire routing requires a sharp angle. The right-angle orientation allows for low-profile connections, helping maintain clean and organised wiring layouts in confined or complex assemblies. This makes them ideal for applications where traditional straight terminals are impractical due to surrounding components. Fully insulated for maximum protection against short circuits and accidental contact, these terminals are well-suited for both indoor and outdoor environments where safety and reliability are critical. For best results, use the HYYT7 crimping tool to ensure consistent and high-integrity terminations across various wire gauges. |
| Colour | Blue (BU) |
| Description | Quick connect - fully insulated 90° flag female funnel, conductor size 1.5 - 2.5mm², blue |
| Local order number | QDF2-6F90 |
| Material | Brass (BS), Polyamide 6.6 (PA66) |
| Max Current | 27A |
| Max Voltage | 600V |
| PART DESCRIPTION | QDF2-6F90-BS/PA66-BU |
| Package Content | 50pcs. |
| Package Content packed in | bag |
| Product Family | Double Grip Pre-Insulated Terminals |
| Product Group | 90° Nylon Flag Quick Connect Fully Insulated Female Funnel Entry 105 °C |
| Type | QDF2-6F90 |
