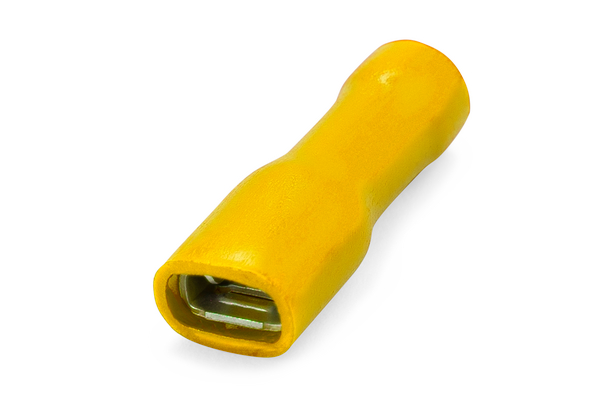

Quick connect fully insulated female funnel entry terminal, conductor sizes 4 - 6mm2, 4.8 x 0.8mm, 50pcs, yellow
Art.-No. 924-00938
| QDF5-5F/8-BS/PVC/CU-YE
Copied
- Available in a range of tab sizes and two conductor sizes for versatile wiring needs
- Fully insulated
- Colour-coded for easier identification
- Enhanced pull-out force provides a stronger, more secure hold
- Manufactured with an additional copper sleeve to allow for premium vibration resistance
- Packaged in a resealable bag
- REACH compliant
Request your individual offer now
Request quote
More products in this product group:
| Application | Designed for applications where safety is a priority-particularly in environments that demand protection against accidental contact, such as inside machinery enclosures, near fan motors, or within open-access electrical cabinets. The insulation provides full coverage over the connection point, reducing the risk of exposure to live terminals and helping prevent electrical shorts. The funnel entry guides the wire smoothly into position, reducing strand damage and improving installation speed. Combined with a double grip crimp design, these terminals offer a secure, vibration-resistant connection that performs reliably in demanding conditions. For best results, pair with the HellermannTyton QDM Series and crimp using the HYYT7 tool to ensure consistent, safe and durable connections. |
| Colour | Yellow (YE) |
| Description | Quick connect - fully insulated female funnel double grip, conductor size 4 - 6mm² - TAB 4.8 x 0.8mm, yellow |
| Local order number | QDF5-5F/8 |
| Material | Brass (BS), Polyvinylchloride (PVC), Copper (CU) |
| Max Current | 24A |
| Max Voltage | 300V |
| PART DESCRIPTION | QDF5-5F/8-BS/PVC/CU-YE |
| Package Content | 50pcs. |
| Package Content packed in | bag |
| Product Family | Double Grip Pre-Insulated Terminals |
| Product Group | Quick Connect Fully Insulated Female Funnel Entry |
| Type | QDF5-5F/8 |
